Cover Upholstery, Seat Pan With Seat Depth Adjustor, Separating and Connecting

Cover Upholstery, Seat Pan with Seat Depth Adjustor, Separating and Connecting

• The work description is based on a manual or power sport front seat and super sport front seat.

Special tools, testers and auxiliary items required

• Upholstery Clip Pliers (V.A.G 1634)

Removing






- Remove the seat pan cover and cushion and the seat depth adjustor. Refer to => [ Cover and Upholstery, Seat Pan with Seat Depth Adjust ] Cover and Upholstery, Seat Pan With Seat Depth Adjust.

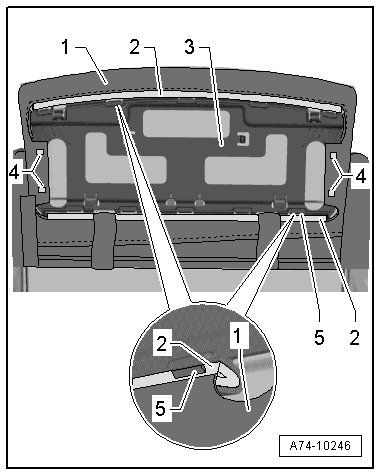

- Unclip the retaining channels - 2 - from the catches - 5 -.

- Disengage the cover from the tabs - 4 - on both sides.

- Remove the support with seat depth adjuster cushion - 3 - from cover - 1 -.

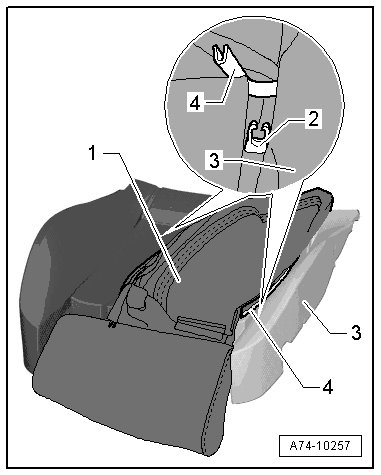

- Remove the cover - 1 - from the upholstery - 3 - as far as possible.






- Remove the contour strip - 4 - from the clips - 2 -.

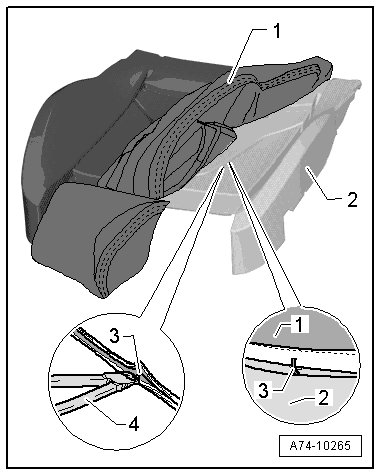

- Cut through the upholstery clips - 3 - using pliers - 4 -.






- Remove the cover - 1 - from cushion - 2 -.

Installing

Installation is reverse of removal, but note the following:

- When installing new upholstery clips, use (V.A.G 1634).
