Hydraulic Cylinder, Removing from Convertible Top Compartment Hinge

Hydraulic Cylinder, Removing from Convertible Top Compartment Hinge

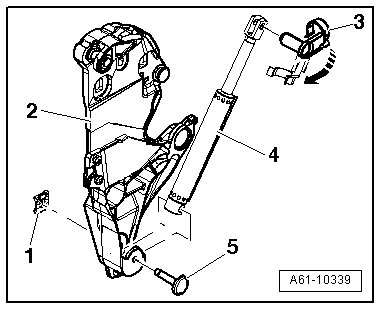

- Remove the side trim panels near the convertible top compartment hinge..

- Unlock the bolt - 3 - opposite the direction of the arrow and remove it.





- Unlock the locking spring - 1 - and remove it from the bolt - 5 -.

- Remove the pin - 5 - from the hinge - 2 - and the cylinder - 4 -.
