Sill Panel Trim Assembly Overview

Sill Panel Trim Assembly Overview

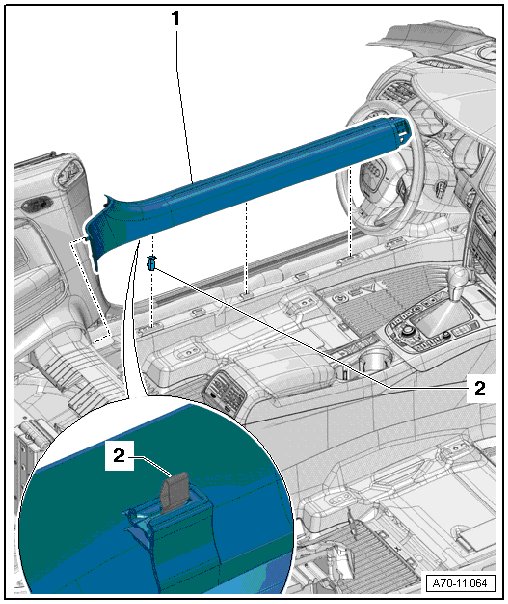

1 Sill panel strip

• Removing and Installing, refer to => [ Sill Panel Trim ] Sill Panel Trim

2 Clips

• Quantity: 3

• Insert in the sill panel strip

• Replace if damaged or deformed
