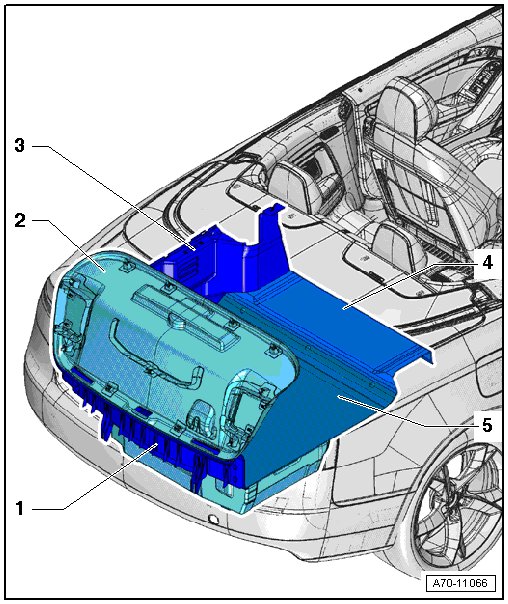

Luggage Compartment Trim Assembly Overview

Luggage Compartment Trim Assembly Overview






1 Rear cross panel trim

• Assembly overview, refer to => [ Rear Cross Panel Trim Assembly Overview ] Rear Cross Panel Trim Assembly Overview

• Removing and Installing, refer to => [ Rear Cross Panel Trim ] Rear Cross Panel Trim

2 Trim

• For the engine compartment lid

• Assembly overview, refer to => [ Rear Lid Trim Assembly Overview ] Rear Lid Trim Assembly Overview

• Removing and Installing, refer to => [ Rear Lid Trim ] Rear Lid Trim

3 Luggage compartment side trim

• Assembly overview, refer to => [ Luggage Compartment Side Trim Assembly Overview ] Luggage Compartment Side Trim Assembly Overview

• Removing and Installing, refer to => [ Luggage Compartment Side Trim ] Luggage Compartment Side Trim

4 Front luggage compartment floor covering

• Assembly overview, refer to => [ Luggage Compartment Floor Mat Assembly Overview ] Luggage Compartment Floor Mat Assembly Overview

• Removing and Installing, refer to => [ Front Luggage Compartment Covering ] Front Luggage Compartment Covering

5 Rear luggage compartment floor covering

• Assembly overview, refer to => [ Luggage Compartment Floor Mat Assembly Overview ] Luggage Compartment Floor Mat Assembly Overview

• Removing and Installing, refer to => [ Rear Luggage Compartment Floor Covering ] Rear Luggage Compartment Floor Covering
