Instruments - DIS, Rear Camera Display In German
91 Reverse camera and DIS display text in German language91 11 79
2017193/5
January 12, 2011.

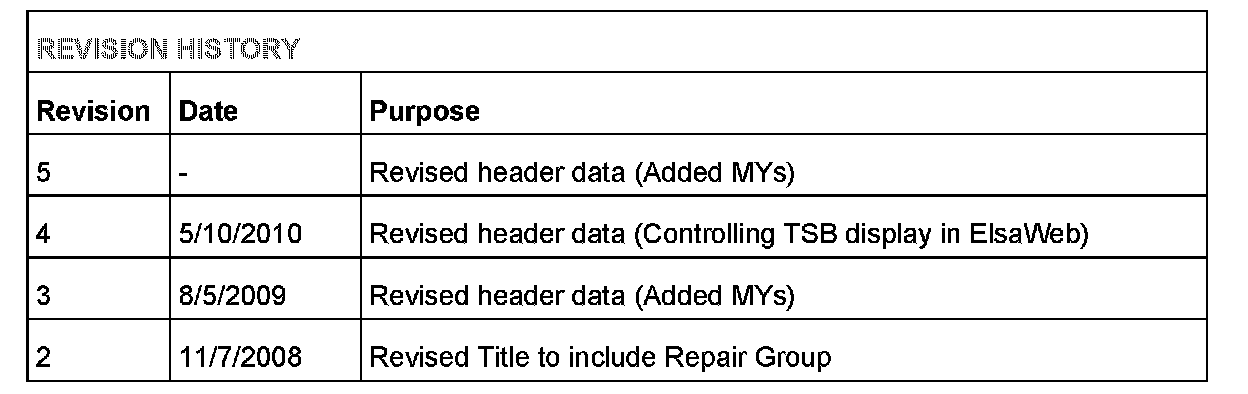

Supersedes Technical Service Bulletin Group 91 number 10 - 23 dated May, 10 2010 for the reasons listed below.

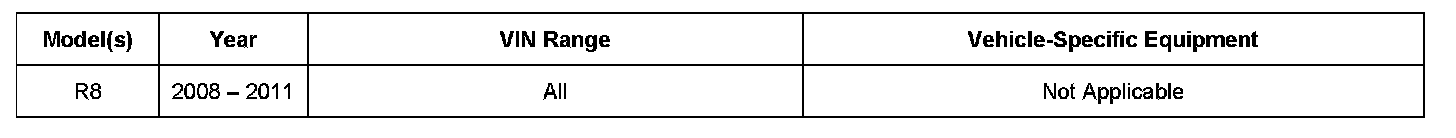

AFFECTED VEHICLES
CONDITION
^ Some segments of the instrument cluster Driver Information System (DIS) will show text in the German language.
^ When turning the magnetic ride on/off, the text in the DIS will display in the German language.
^ The text to prompt the driver to depress the clutch or brake pedal will display in the German language.
^ When reverse gear is selected, the text in the reverse camera display, in the RNS-E unit, is in the German language.
TECHNICAL BACKGROUND
The language option in the (DIS) has been set to German.
PRODUCTION SOLUTION
Not applicable.
SERVICE
Change the language selection from German to English in the DIS.
1. Press and release the Reset button on the bottom of the windshield wiper lever multiple times until the start menu, ANZEIGEART (Display Type), appears in the DIS.
2. Press the rocker switch on the end of the windshield wiper lever until the arrow on the left in the DIS aligns with the word EINSTELLEN (Set).
3. Press the reset button to select EINSTELLEN.
4. Press the rocker switch until the arrow aligns with the word SPRACHE (Language).
5. Press the reset button to select SPRACHE.
6. Press the rocker switch until the arrow aligns with the word English.
7. Press the Reset button to select English.
8. Press and hold the Reset button for longer than 2 seconds to return to the start menu. Then press the Reset button again to exit the start menu.
WARRANTY INFORMATION
This TSB is informational only and not applicable to any Audi warranty.
ADDITIONAL INFORMATION
All parts and service references provided in this TSB are subject to change and/or removal. Always check with your Parts Department and service manuals for the latest information.
