Interior/Brakes - Noise From Center Console Area
46 Noises from the center console46 11 12
2017765/6
March 10, 2011.

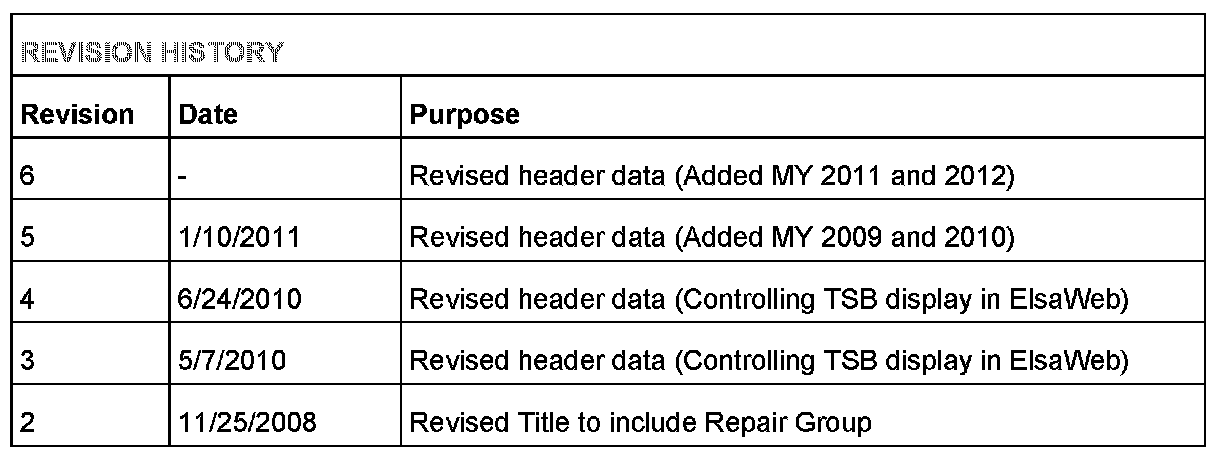

Supersedes Technical Service Bulletin Group 46 number 11 - 10 dated January 10, 2011 for reasons listed below.

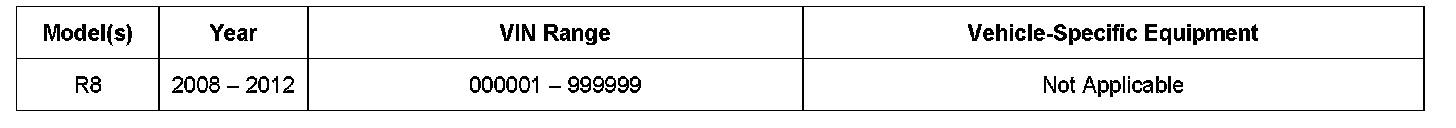

AFFECTED VEHICLES
CONDITION

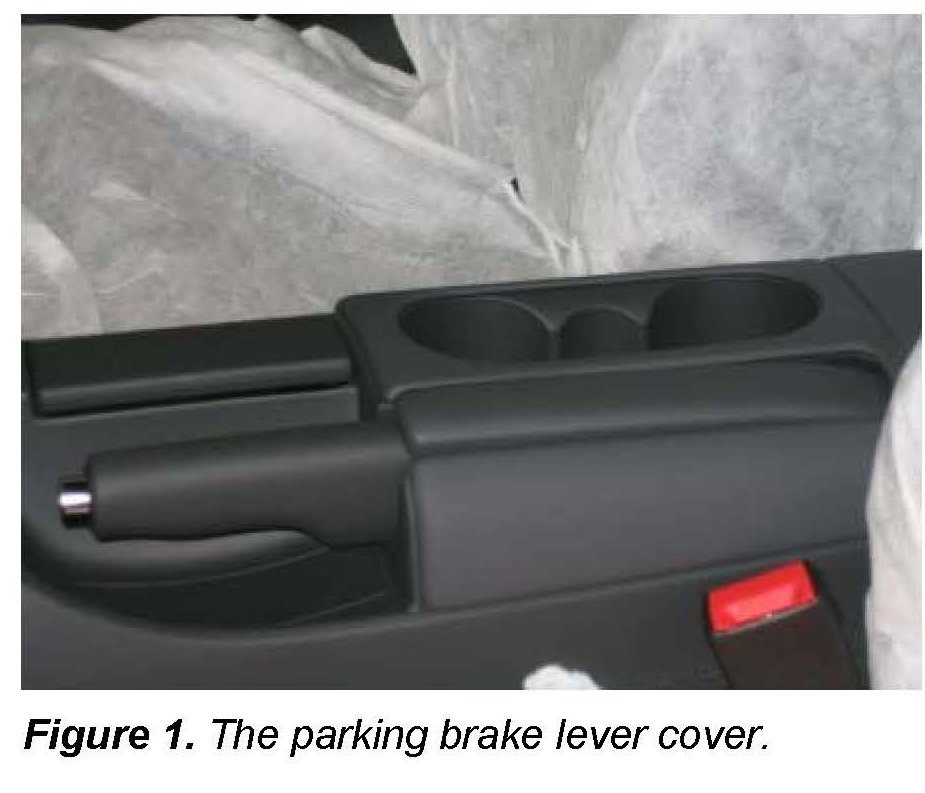

Noise from the parking brake lever cover during use.
TECHNICAL BACKGROUND
Movement between the cover and grip.
PRODUCTION SOLUTION
None.
SERVICE
1. Remove the parking brake lever handle grip.

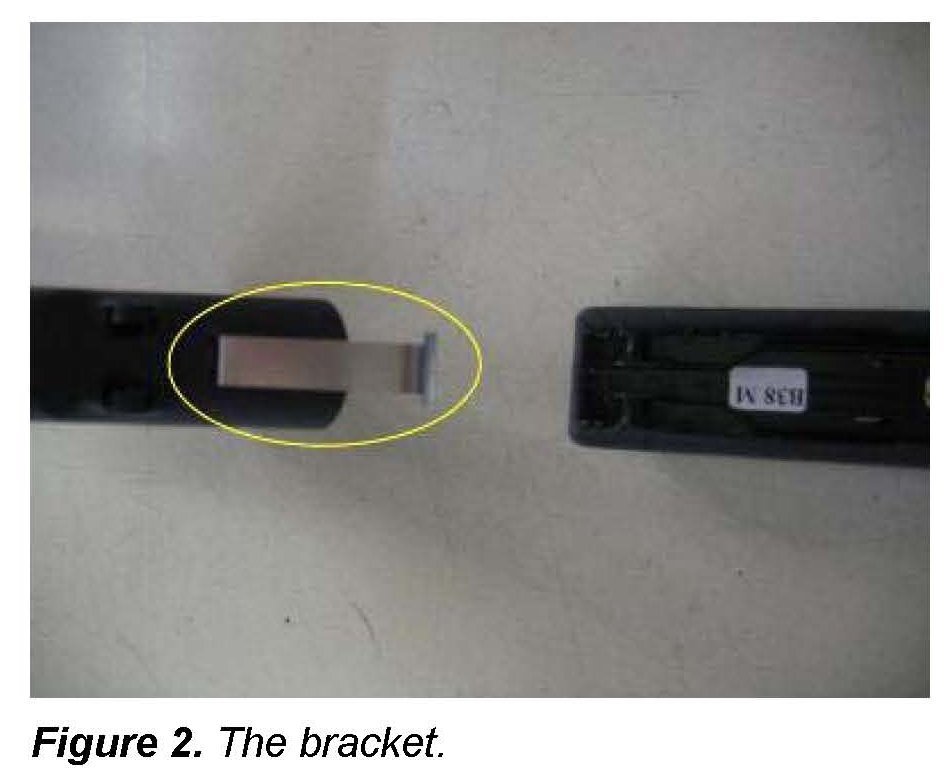

2. Apply special lubricant G 052 141 A2 to the bracket shown in Figure 2.
3. Test drive the vehicle to ensure that the customers noise concern has been resolved.

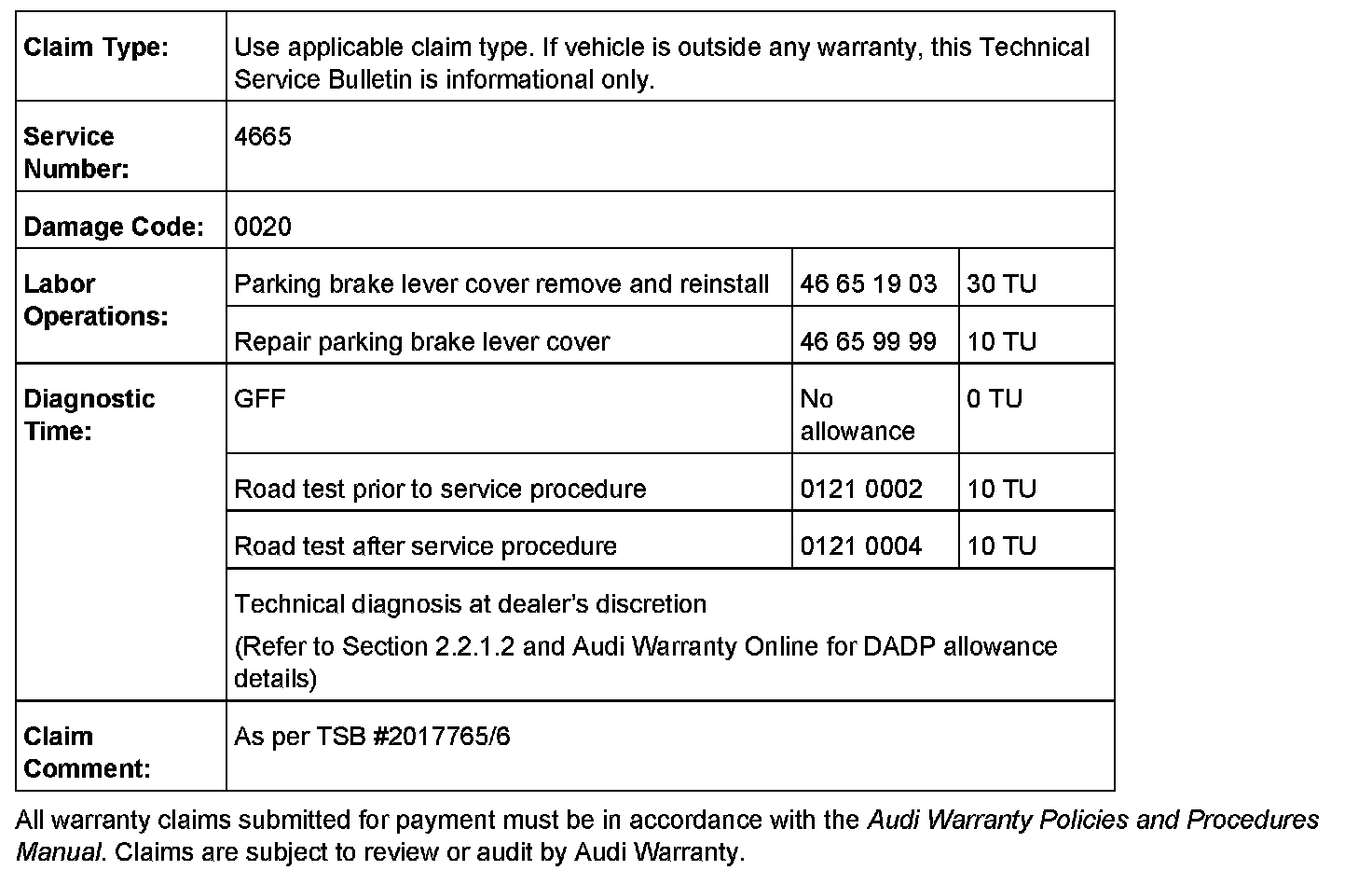

WARRANTY INFORMATION

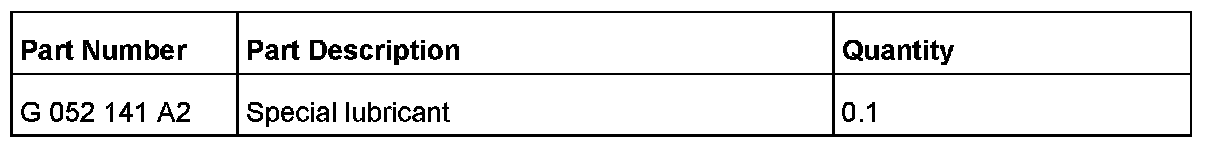

REQUIRED PARTS AND TOOLS
ADDITIONAL INFORMATION
All parts and service references provided in this TSB are subject to change and/or removal. Always check with your Parts Department and service manuals for the latest information.
