Final Drive, Differential
Special Tools
Special tools, testers and auxiliary items required

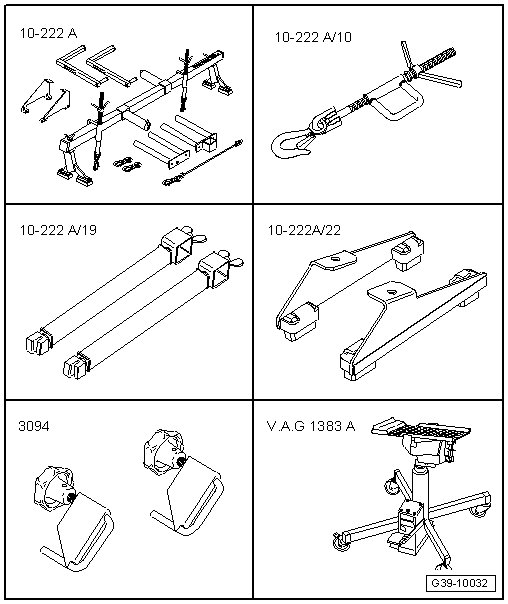

• Engine Support Bridge (10 - 222 A)
• Bracket with Spindle and Hook (10 - 222 A /10)
• Adapter (10 - 222 A /19)
• Adapter (10 - 222 A /22)
• Hose clamps up to 25 mm Dia. (3094)
• Engine-/Gearbox Jack (V.A.G 1383 A)

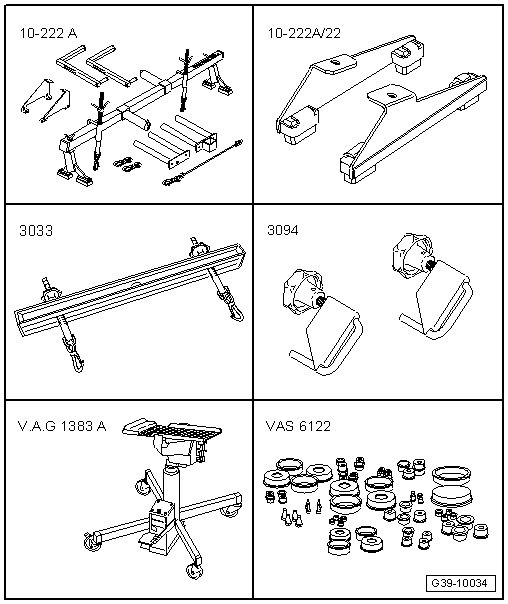

Special tools, testers and auxiliary items required
• Engine Support Bridge (10 - 222 A)
• Adapter (10 - 222 A /22)
• Lifting Tackle (3033)
• Hose Clamps Up to 25 mm Dia. (3094)
• Engine-/Gearbox Jack (V.A.G 1383 A)
• Engine Bung Set (VAS 6122)

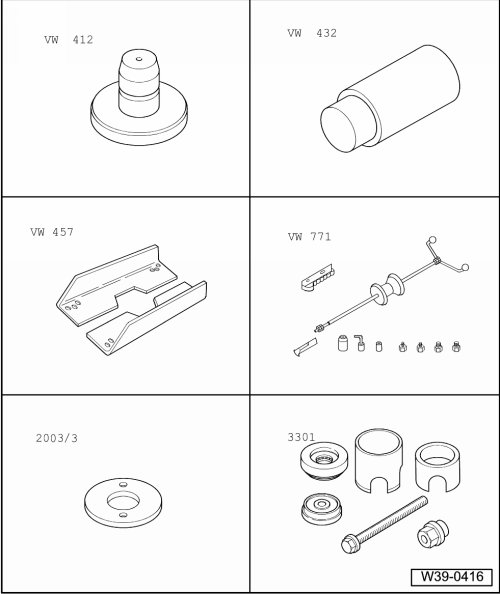

Special tools, testers and auxiliary items required
• Thrust Disc (VW 412)
• Arbor 50 mm Dia. (VW 432)
• Support Channels (VW 457)
• Seal Installer (2003/3)
• Assembly Tool (3301)
Special tools, testers and auxiliary items required

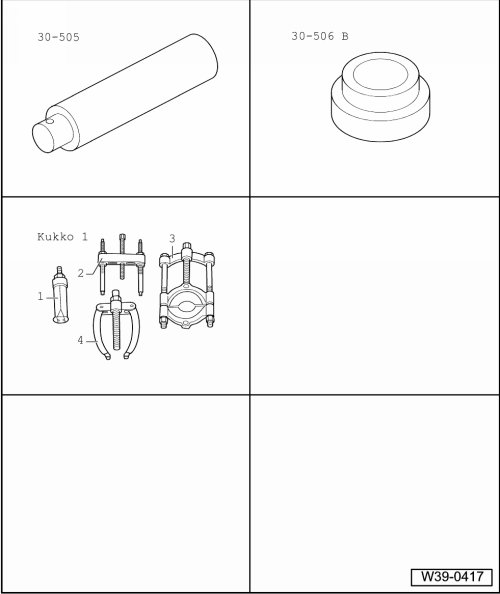

• Locking Pin (30 - 505)
• Press Support (30 - 506 B)
• - 1 - - Kukko Extractor 37-46 mm (21/6)
• - 4 - - Kukko Support (22/2)
Special tools, testers and auxiliary items required
• Engine Support Basic Set (T40091)
• Engine Supplement Left and Right (T40093)
• Oil Collecting and Extracting Device (V.A.G 1782)
• Slide Hammer - Complete Set (VW 771)

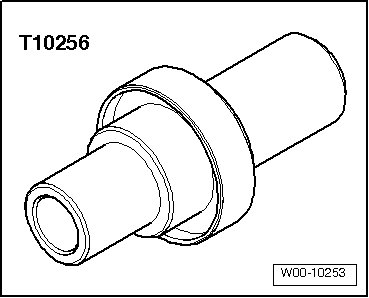

• Thrust Piece (T10256) for rear final drive 0BN

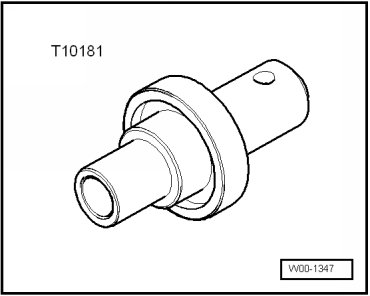

• Thrust Piece (T10181) Rear Final Drive 0BN

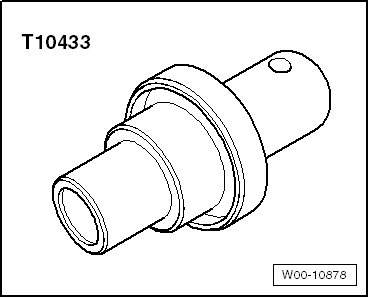

• Thrust Piece (T10433) Rear Final Drive 0BP

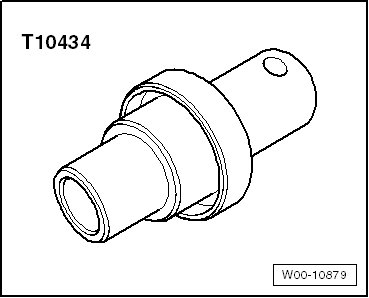

• Thrust Piece (T10434) for rear final drive 0BP

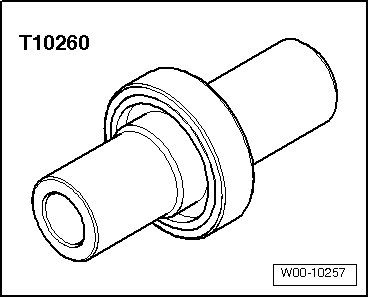

• Thrust Piece (T10260)

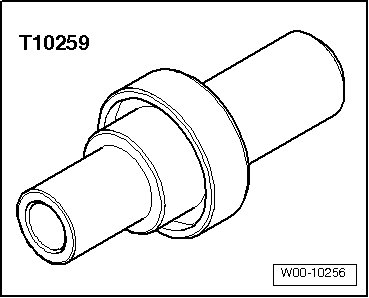

• Thrust Piece (T10259) for 0C1 front final drive

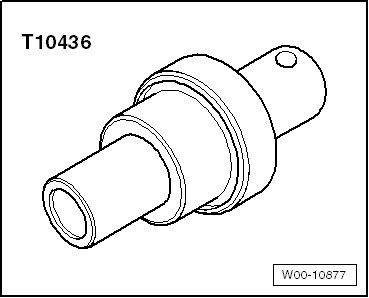

• Thrust Piece (T10436) for 0BM final drive

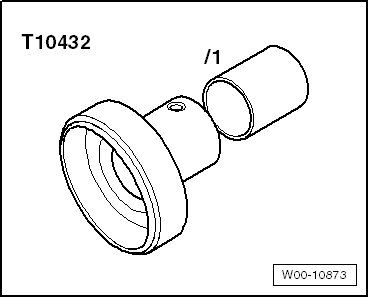

• Assembly Tool (T10432) for Rear Final Drive 0BN
• Thrust Piece (T10432/1) for Rear Final Drive 0BN

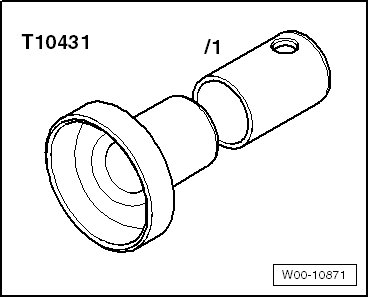

• Assembly Tool (T10431) for Rear Final Drive 0BP
• Thrust Piece (T10431/1) for Rear Final Drive 0BP
• Puller (T10055)

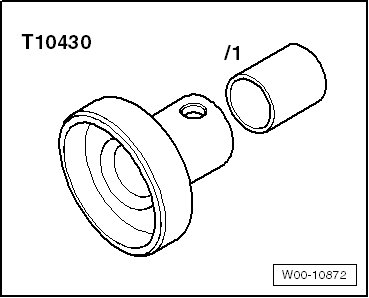

• Assembly Tool (T10430)

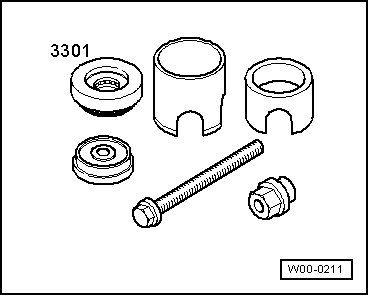

• Assembly Tool (3301)

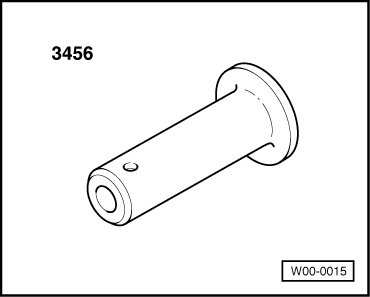

• Press Piece (3456)

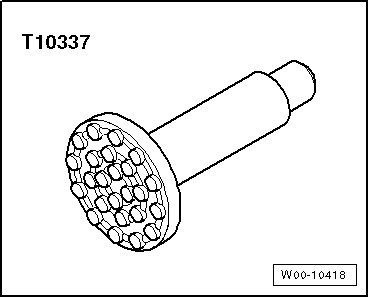

• Transmission Support (T10337)
• Transmission Support (VW 785/1 B)
• - 3 - - Kukko Separating Tool 17-2
• Thrust Piece (T10430/1)
• Pulling Hook (VW 771/37)
• Pneumatic /Hydraulic Foot Pump (VAS 6179)
