Controls, Housing

Special Tools






Special tools, testers and auxiliary items required

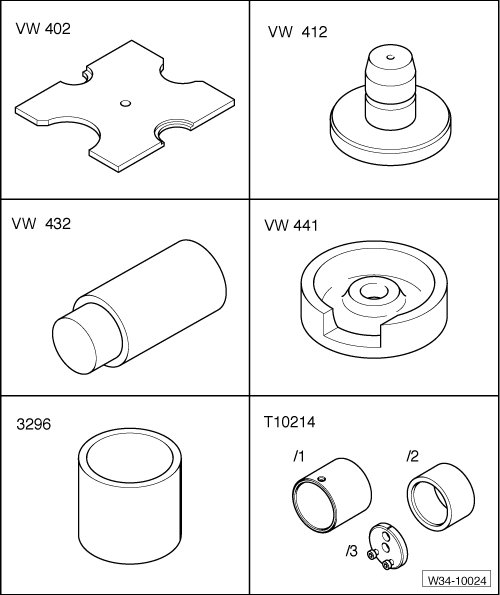

• Thrust Plate (VW 402)

• Thrust Disc (VW 412)

• Arbor 50 mm Dia. (VW 432)

• Base Block (VW 441)

• Tube (3296)

• Assembly Tool (T10214)






Special tools, testers and auxiliary items required

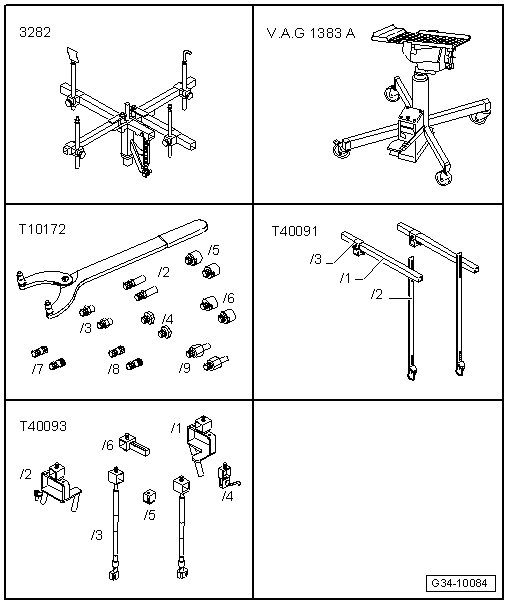

• Transmission Support (3282)

• Engine-/Gearbox Jack (V.A.G 1383 A)

• Counterhold Tool Touareg V10 (T10172) with Adapter (T10172/6)

• Engine Support Basic Set (T40091)

• Adapter (T40093/6) off engine Support Supplement Set (T40093)






Special tools, testers and auxiliary items required

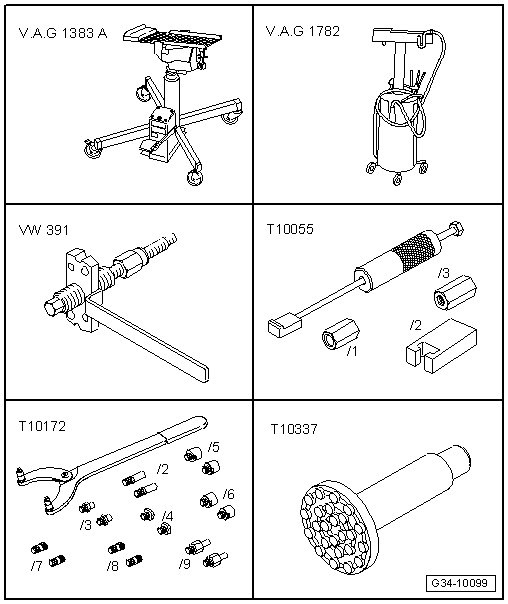

• Engine-/Gearbox Jack (V.A.G 1383 A)

• Oil Collecting and Extracting Device (V.A.G 1782)

• Puller (VW 391)

• Puller (T10055) with adapter (T10055/2)

• Counterhold Tool Touareg V10 (T10172) and Adapter (T10172/6)

• Transmission Support (T10337)

Special tools, testers and auxiliary items required

• Shackle (10 - 222 A /12)






• Shop Crane (VAS 6100)

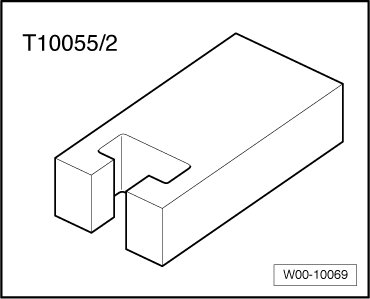

• Adapter (T10055/2)

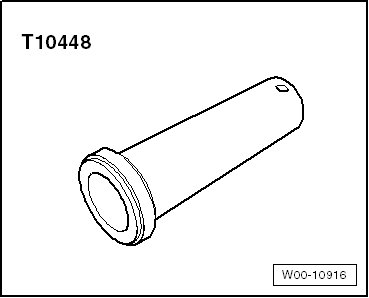

• Thrust Piece (T10448)

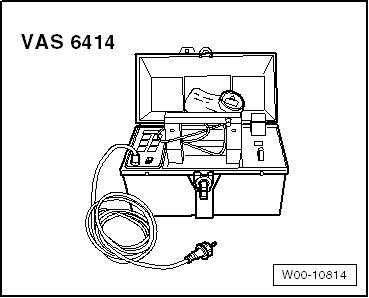

• Inductive Heater (VAS 6414)

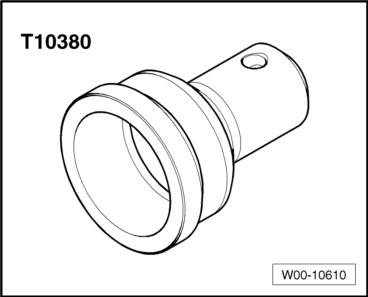

• Thrust Piece (T10380)






• Assembly Tool (T10399)

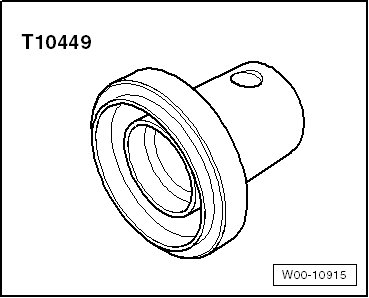

• Thrust Piece (T10449)

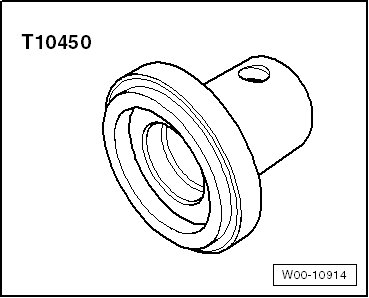

• Thrust Piece (T10450)
