Bonded Rubber Bushing, Flange Shaft and Driveshaft

Bonded Rubber Bushing, Flange Shaft and Driveshaft

Removing

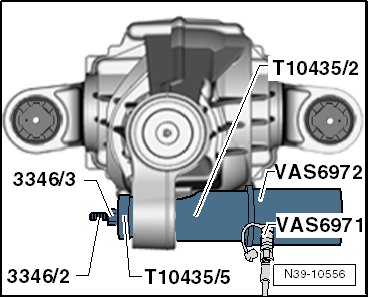

- Set the pneumatic/hydraulic foot pump (VAS 6179) on the lowest level.






- Pull out bonded rubber bushing.

Installing

- Place the bonded rubber bushing in its installed position on the front final drive.

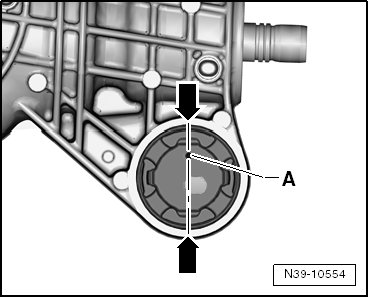

• The little hole - A - and the big detent for the bonded rubber bushing - arrows - must be vertical to the final drive.






- Install the bonded rubber bushing all the way.
