Right Flange Shaft Dust Cap

Right Flange Shaft Dust Cap

Special tools, testers and auxiliary items required

• Assembly Tool (3301)

• Press Piece (3456)

• Kukko Separating Tool 17-2

• Flange shaft removed, refer to => [ Right Flange Shaft Seal ] Right Flange Shaft Seal.

Procedure

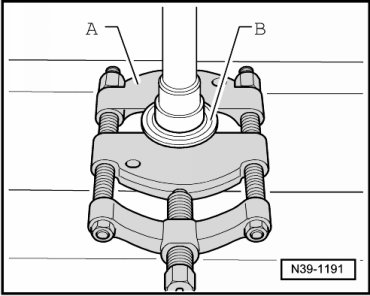

- Press the dust cap - B - off of the flange shaft.






A Separating device Kukko 17-2

- Press the new dust cap for the flange shaft - A - using the (3456) and sleeve (3301/3).






• Mount the sleeve (3301/3) with the detent facing the dust cap - A -.
