Left Flange Shaft Dust Cap

Left Flange Shaft Dust Cap

Special tools, testers and auxiliary items required

• Thrust Disc (VW 412)

• Arbor 50 mm Dia. (VW 432)

• Support Channels (VW 457)

• Seal Installer (2003/3)

• Assembly Tool (3301)

• Kukko Separating Tool 17-2

• Sealing grease (G 052 128 A1)

Procedure

• Flange shaft removed, refer to => [ Left Flange Shaft Seal ] Left Flange Shaft Seal

- Press the dust cap - B - off of the flange shaft.






A Separating tool 22 through 115 mm, for example Kukko 17/2

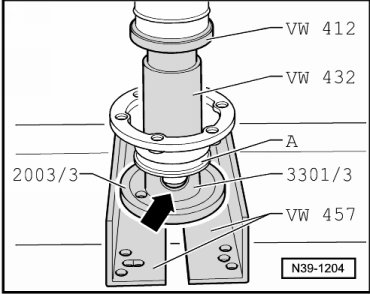

- Press the dust cap - A - for the flange shaft on.






Mount the sleeve (3301/3) with its detent - arrow - facing the dust cap - A -.
