Bonded Rubber Bushing In Transmission Support

Bonded Rubber Bushing in Transmission Support

Special tools, testers and auxiliary items required

• Thrust Plate (VW 402)

• Thrust Disc (VW 412)

• Arbor 50 mm Dia. (VW 432)

• Base Block (VW 441)

• Tube (3296)

• Assembly Tool (T10214)

- Remove the transmission support, refer to => [ Transmission Support and Bracket ] Transmission Support and Bracket.

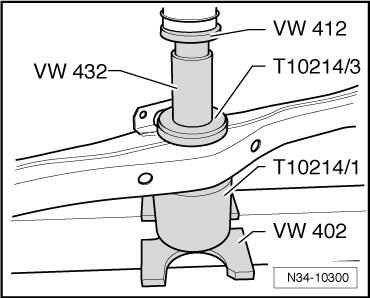

- Press out the bonded rubber mount.






- Bolt the new bonded rubber bushing to the thrust piece (T10214/3).

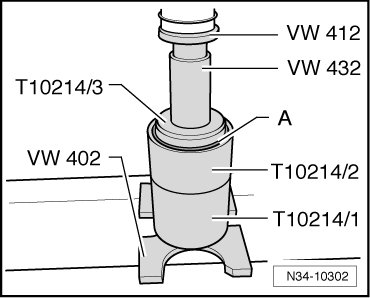

- Press the new bonded rubber bushing - A - and the thrust piece (T10214/3) in the guide sleeve (T10214/2) until the thrust piece (T10214/3) is flush with the guide sleeve (T10214/2).

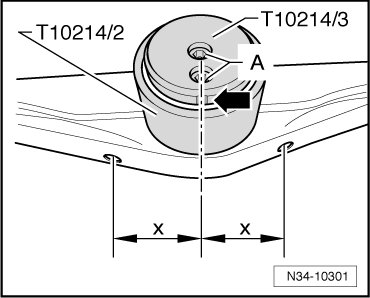

- Next, use the (T10214) to align the new bonded rubber bushing to the transmission support.






- Do this by aligning the bolts - A - or the notch - arrow - on the thrust piece (T10214/3) along the center line with the holes in the transmission support.

The spacing must be even "x".

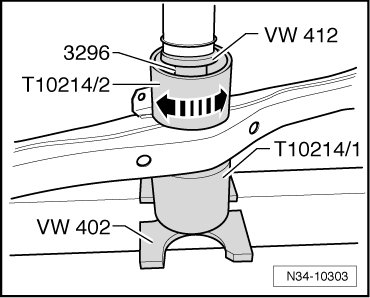

- Next, press the bonded rubber bushing onto the transmission support until the guide sleeve (T10214/2) can be turned by hand - arrows -.






Press the bonded rubber bushing just enough so that it is no higher than the (3296) , or, if necessary, use the (VW 441) to keep pressing it all the way to the stop.

- Install the transmission support. Refer to => [ Transmission Support and Bracket ] Transmission Support and Bracket.
