Input Shaft Seal

Input Shaft Seal

Special tools, testers and auxiliary items required

• Puller (T10055)

• Adapter (T10055/2)

• Thrust Piece (T10448)

• Sealing grease (G 052 128 A1)

• With approximately 4 mm diameter screw

Removing

• Remove the transfer case; refer to => [ Transfer Case ] Removal and Replacement.

- Use a needle-bearing drift to punch a hole in the center of the shaft seal.






- Screw in with 4 mm diameter screws.

• Do not damage the sealing surface on the driveshaft.

• Do not screw the screw in too tight or you will damage the bearing that is behind it.

- Use the (T10055) to remove the shaft seal.

Installing

- Apply a light layer of lubricant on the outer circumference of the shaft seal.

- Fill the space between the sealing and dust lips halfway with sealing grease (G 052 128 A1).

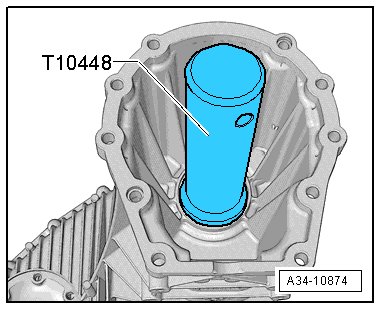

- Install the new shaft seal all the way without tilting it.






- Install the transfer case. Refer to => [ Transfer Case ] Removal and Replacement.

- Check the transmission fluid level in the transfer case. Refer to => [ Gear Oil Level in the Transfer Case, Checking ] Gear Oil Level In the Transfer Case, Checking.
