Engine Mount

Engine Mount

Special tools, testers and auxiliary items required

• Engine Support Bridge (10 - 222 A)

• Bracket with Spindle and Hook (10 - 222 A /10) , qty. 2

• Adapter (10 - 222 A /19)

• Adapter (10 - 222 A /22)

• Engine Support Basic Set (T40091)

• Engine Support Supplement Set (T40093)

Removing






- On vehicles with air suspension, activate vehicle lift mode.

- Remove the air filter housing.

- Remove the noise insulation - 1 and 2 -.






- Mount the (10 - 222 A) with the (10 - 222 A /22) and (T40091/3) on the fender bolting edge as illustrated.






- Install the other parts as illustrated. Position the (10 - 222 A /19) on the notches on the longitudinal members.






- Engage the (10 - 222 A /10) into the rear engine lift eyes.

- Slide supports (T40091/2) with both sliders (T40093/5) into both mounts (T40093/4).






- Install the long spindles from the (10 - 222 A) and attach the hooks to the engine lifting eyes.

There is the risk of an accident.

• Secure support (T40091/2) with connector pins and (T40093/4).

- Raise engine until the engine supports are above the engine bracket threaded pins and evenly tension all spindles to achieve even weight distribution.

Right Engine Mount

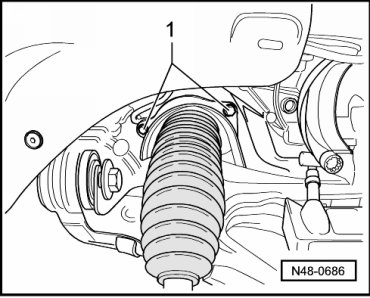

- Remove the bolts - 1 - and remove the heat shield for the steering gear boot.

Continued for Both Sides






- Remove the nut - 1 - and the bolts - arrows -.

- Raise the engine using the spindles far enough so the engine support is above the threaded pins in the engine mount.

- Remove the engine mount.

• To remove the right engine support, turn the steering to the right until it stops.

Installing

Install in reverse order, paying attention to the following:

• For the correct tightening specifications, refer to => [ Subframe Overview ] Subframe Overview.

- Install the heat shield for the steering gear boot.

- Install the noise insulation.

- Install the air filter housing.

- On vehicles with air suspension, deactivate vehicle lift mode.
