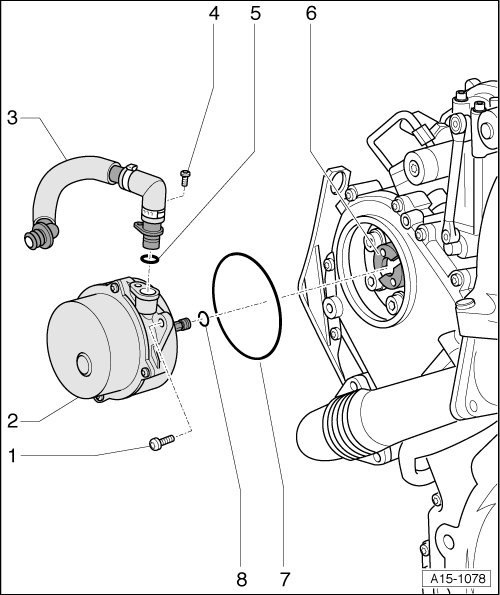

Vacuum Pump Assembly Overview

Vacuum Pump Assembly Overview

• Only the vacuum pump is shown in the illustration and not the installation location.






1 Bolt

• 9 Nm

• Remove to remove the pump.

• The pump is not designed to be disassembled.

2 Vacuum Pump

• Removing and installing, refer to => [ Vacuum Pump ] Vacuum Pump.

3 Vacuum Hose

• Secure with hose clamps that match those used in production. Allocation, refer to the Electronic Parts Catalog (ETKA).

4 Bolt

• 5 Nm

5 O-Ring

• Replace.

6 Intake Camshaft

7 O-Ring

• Replace.

8 O-Ring

• Replace.
