Seat Adjustment Switch

Seat Adjustment Switch

Special tools, testers and auxiliary items required

• Trim Removal Wedge (3409)

Removing

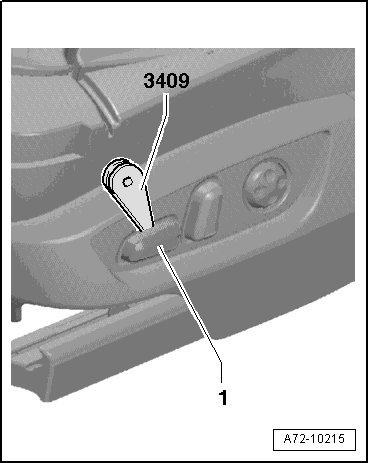

- Using (3409) , pry switch - 1 - out of catch on Seat Fore/Aft Adjustment Button (E418) , Inclination Adjustment Button (E421) and Seat Height Adjustment Button (E424).

Installing

Install in reverse order of removal. Note the following:

- Ensure switch is engaged correctly.
