Center Seat Lock Trim Panel

Center Seat Lock Trim Panel

Removing

Special tools, testers and auxiliary items required

• Release Lever (T10039)

Removing






- Fold left backrest down.

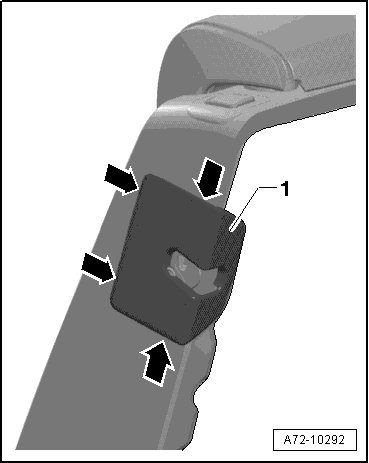

- Pry trim panel - 1 - with (T10039) in area of catches - arrows -.

Installing

- Press trim panel - 1 - into backrest until it engages.
