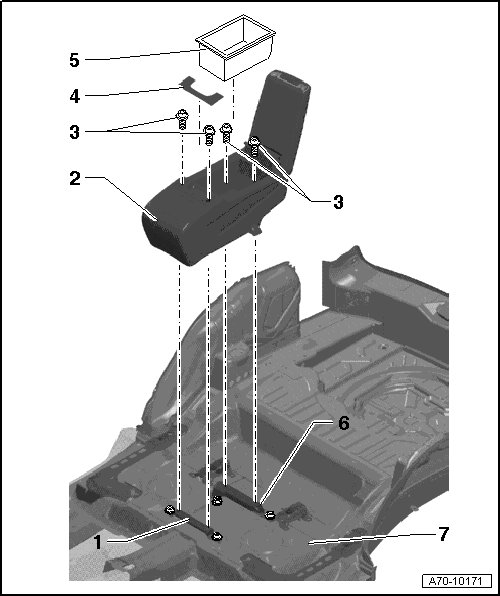

Multibox Assembly Overview

Multibox Assembly Overview






1 Front Bracket

2 Multibox

• Removing and installing, refer to => [ Multibox ] Multibox.

3 Bolt

• 6 Nm

4 Cover

• Clipped in.

• Unclip with Trim Removal Wedge (3409).

5 Box

• Clipped in

• Unclip with Trim Removal Wedge (3409).

6 Rear Bracket

7 Carpet
