Window Frame Trim

Window Frame Trim

Special tools, testers and auxiliary items required

• Trim Removal Wedge (3409)

Removing






- Lower the door window.

- Remove the door trim panel. Refer to => [ Door Trim Panel ] Door Trim Panel.

- Vehicles equipped with sun shade: remove the sun shade mount. Refer to => [ Sun Shade Mount ] Sun Shade Mount.

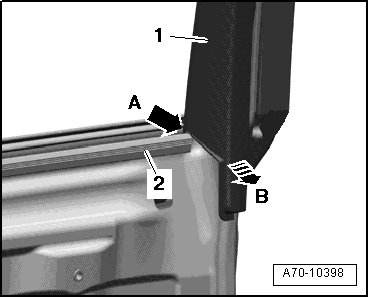

- Raise edge - arrow A - of window frame trim - 1 - over window frame seal - 2 -.

- Re window frame trim from frame - arrow B -.

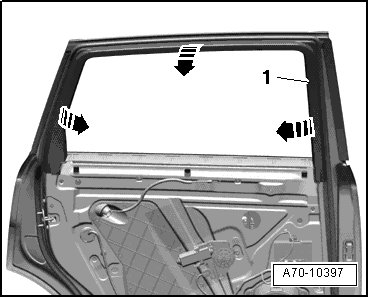

- Beginning at front, remove window frame trim - 1 - from window frame - arrows -.






Installing






Install in reverse order of removal. Note the following:

- First position back of window frame trim on outer edge of frame.

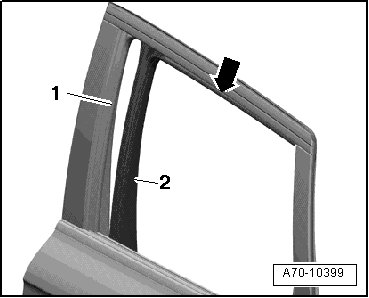

- Pull window frame trim - 2 - over window frame seal - 1 -. Trim must engage in groove - arrow -.

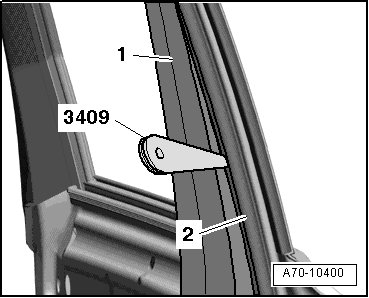

- Pull (3409) between window frame trim - 1 - and door seal - 2 - along the entire length and at the same time, press window frame trim onto frame in seal groove.
