Rear Door Trim, Trim Molding

Trim Molding

Special tools, testers and auxiliary items required

• Trim Removal Wedge (3409)

Removing

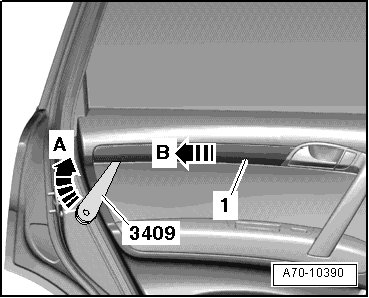

- Carefully remove trim panel - 1 - in rear area from door trim - arrow A - using (3409).

- Remove trim panel in - direction of arrow B - from door trim.

Installing

Install in reverse order of removal.
