Rear Door Trim, Switch Mount

Switch Mount

Removing

- Remove ashtray. Refer to => [ Ashtray ] Ashtray.

- Remove the door trim panel. Refer to => [ Door Trim Panel ] Door Trim Panel.

- Remove armrest. Refer to => [ Armrest ] Armrest.

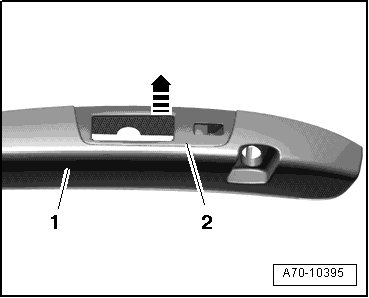

- Remove switch mount - 2 - from armrest - 1 - - arrow -.






- Remove the rear window regulator switch.

Installing

Install in reverse order of removal.
