Oil Pressure Switch (F22)

Oil Pressure Switch (F22)

Removing

- On a vehicle with air suspension, activate vehicle lift mode.

- Remove the front noise insulation - 1 -.

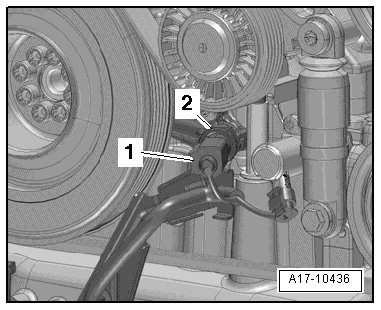

- Disconnect the connector - 1 -.






• Lay a cloth below to catch the draining engine oil.

- Remove the oil pressure switch - 2 -.

Installing

Install in reverse order of removal. Note the following:

• Tightening specifications, refer to => [ Upper Oil Pan Overview ] Upper Oil Pan Overview.

• Replace the seal.

- Install the noise insulation.

- On a vehicle with air suspension, deactivate vehicle lift mode.
