Charge Air Cooler Overview

Charge Air Cooler Overview

•

• Pay attention to the rules of cleanliness. Refer to => [ Clean Working Conditions ] Clean Working Conditions.

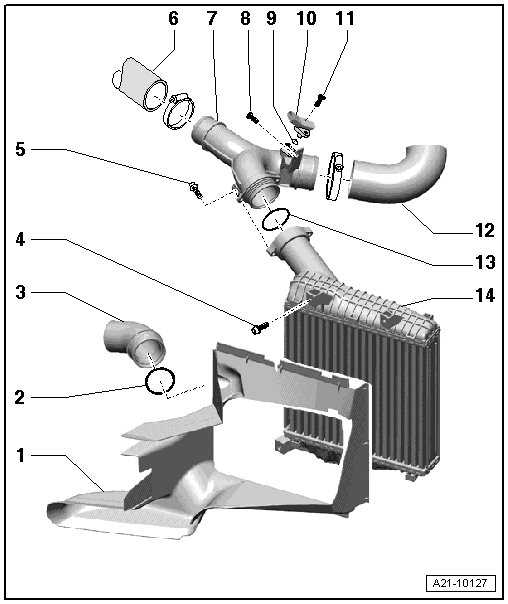

• The illustration shows the left charge air cooler.






1 Front Air Guide

• Attached to the charge air cooler

• Unclip it to the side to remove

2 O-ring

• Replace if damaged or leaking

3 Air Guide Hose

• From turbocharger

• Removing, refer to => [ Removing the Air Guide Hose and Couplings ] Air Duct Pipes and Air Duct Hoses Overview, Vehicles Built Through 05.10

• Installing, refer to => [ Installing the Air Guide Hose with the Connector Coupling. ] Air Duct Pipes and Air Duct Hoses Overview, Vehicles Built Through 05.10

4 Bolt

• 9 Nm

5 Bolt

• 9 Nm

6 Air Guide Hose

• To the right charge air cooler

• Must be free of oil and grease when installing

7 Connecting Piece

8 Bolt

• 9 Nm

9 O-ring

• Replace

10 Charge Air Pressure Sensor (G31)

• Removing and installing, refer to => [ Charge Air Pressure Sensor ] Charge Air Pressure Sensor

11 Bolt

• 5 Nm

12 Air Guide Hose

• To the intake manifold

• Must be free of oil and grease when installing

13 O-ring

• Replace

14 Charge Air Cooler

• Removing and installing, refer to => [ Charge Air Cooler ] Charge Air Cooler
