Timing Chain Covers Overview
Timing Chain Covers Overview

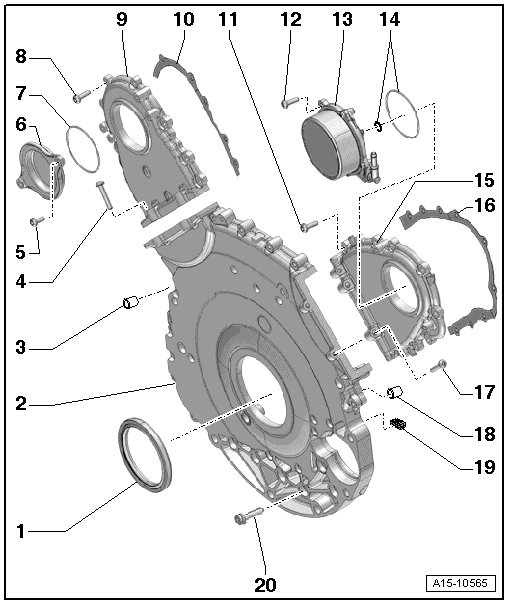

Vehicles Built through 05.10
1 Crankshaft Shaft Seal, Transmission Side
• Removing and installing, refer to => [ Crankshaft Seal, Transmission Side ] Service and Repair
2 Lower Timing Chain Cover
• Removing and installing, refer to => [ Lower Timing Chain Cover ] Lower Timing Chain Cover
3 Alignment Bushing
• 2 pieces
4 Bolt
• Replace
5 Bolt
• 9 Nm
6 Cap
7 O-ring
• Replace
8 Bolt
• Replace
9 Left Timing Chain Cover
• Removing and installing, refer to => [ Left Timing Chain Cover ] Left Timing Chain Cover
10 Gasket
• Replace
11 Bolt
• Replace
12 Bolt
13 Vacuum Pump
14 O-rings
• Replace
15 Right Timing Chain Cover
• Removing and installing, refer to => [ Right Timing Chain Cover ] Right Timing Chain Cover
16 Gasket
• Replace
17 Bolt
• Replace
18 Alignment Bushing
• 2 pieces
19 Sealing Piece
• 2 pieces
20 Bolt

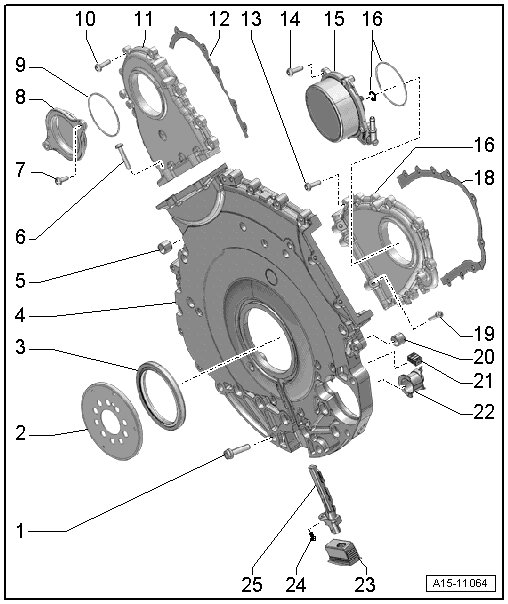

Vehicles Built from 06.10
1 Bolt
2 Sensor Wheel
• For the engine speed sensor (G28)
3 Crankshaft Shaft Seal, Transmission Side
• Removing and installing, refer to => [ Crankshaft Seal, Transmission Side ] Service and Repair
4 Lower Timing Chain Cover
• Removing and installing, refer to => [ Lower Timing Chain Cover ] Lower Timing Chain Cover
5 Alignment Bushing
• 2 pieces
6 Bolt
• Replace
7 Bolt
• 9 Nm
8 Cap
9 O-ring
• Replace
10 Bolt
• Replace
11 Left Timing Chain Cover
• Removing and installing, refer to => [ Left Timing Chain Cover ] Left Timing Chain Cover
12 Gasket
• Replace
13 Bolt
• Replace
14 Bolt
15 Vacuum Pump
16 O-rings
• Replace
17 Right Timing Chain Cover
• Removing and installing, refer to => [ Right Timing Chain Cover ] Right Timing Chain Cover
18 Gasket
• Replace
19 Bolt
• Replace
20 Alignment Bushing
• 2 pieces
21 Sealing piece
• 2 pieces
22 Cover
• For the starter
23 Cover
• For the engine speed (RPM) sensor (G28)
24 Bolt
25 Engine Speed (RPM) Sensor (G28)
Left Timing Chain Cover, Tightening Specifications and Sequence
- Tighten bolts in 4 stages as follows:
Right Timing Chain Cover, Tightening Specifications and Sequence
- Tighten bolts in 4 stages as follows:
Lower Timing Chain Cover, Tightening Specifications and Sequence
- Tighten the bolts in 3 steps according to the tightening sequence:
