Camshaft, Measuring Axial Play

Camshaft, Measuring Axial Play

Special tools, testers and auxiliary items required

• Dial Gauge Holder (VW 387)

• Dial Gauge 0-10 mm (VAS 6079)

Procedure

- Remove the guide frame. Refer to => [ Left Cylinder Head Camshaft ] Left Cylinder Head Camshaft.

- Secure the (VAS 6079) on the cylinder head with the (VW 387) as illustrated.

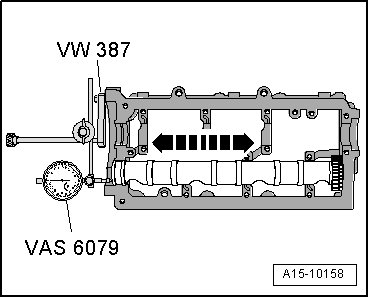

- Determine the axial play on the intake camshaft - arrows -.






• Specified value: 0.03 to 0.08 mm

• Wear limit 0.12 mm

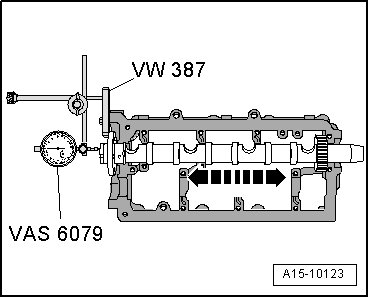

- Determine the axial play on the exhaust camshaft - arrows -.






• Specified value: 0.03 to 0.08 mm

• Wear limit 0.12 mm
