Rear Midrange Speakers (R105) and (R106)

Rear Midrange Speakers (R105) and (R106)

Left Rear Midrange Speaker and Right Rear Midrange Speaker are installed in left and right D-pillars.

- Switch off all electrical consumers.

- Remove the key.

Removing

- Remove the trim from the D-pillar.

- Lower the back of the headliner.

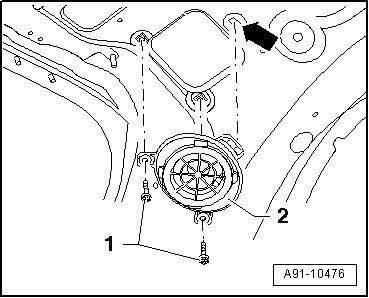

- Remove screws - 1 - (2 Nm).





- Disconnect the connector on the left rear mid/low range speaker.

- Remove left rear mid/low range speaker - 2 - from D-pillar.

Installing

- Install in reverse order of removal.
