Rear Door Trim, Speaker Trim







Speaker Trim

Removing

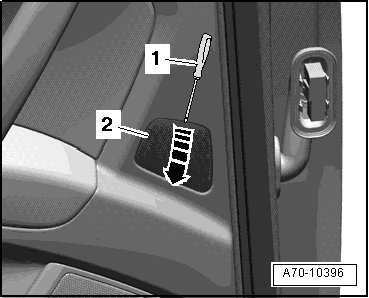

- Carefully pry out speaker trim - 2 - with a flat screwdriver - 1 - from door trim - arrow -.

Installing

Install in reverse order of removal.
