Wiper Motor: Service and Repair

Rear Window Wiper Motor (V12)

Removing

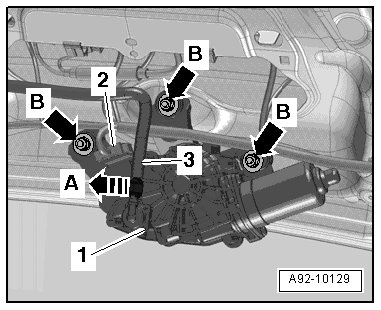

- Remove wiper arm. Refer to => [ Rear Wiper Arm ] Rear Wiper Arm.

- Remove lower luggage compartment lid trim..

- Disconnect the electrical connector - 2 -.

- Remove the clip in the direction of the - A arrow - and remove the washer fluid line - 3 - from the spray nozzle connecting pipe.

- Remove the nuts - B arrows - and the rear window wiper motor - 1 -.

Installing

• Tightening specification, refer to => [ Rear Window Wiper System Overview ] Rear Window Wiper System Overview.

Install in reverse order of removal, observing the following:

• Washer fluid hose must engage audibly into spray jet connector.

- Install lower rear lid trim..

- Adjust wiper arm. Refer to => [ Rear Window Wiper Arm, Adjusting ] Rear Window Wiper Arm, Adjusting.
