Front Door Window Shaft Strip Assembly Overview

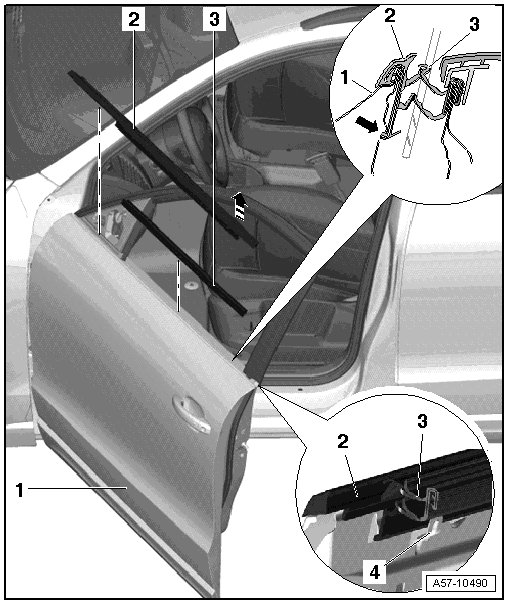

Window Shaft Strip Assembly Overview






1 Door

2 Outer Window Shaft Strip

• Removing and Installing, refer to => [ Outer Window Shaft Strip ] Outer Window Shaft Strip.

3 Inner Window Shaft Strip

• Door trim removed.

- Remove upward from the door flange.

4 Catches

• Push the window shaft strip into the hooks as illustrated.
