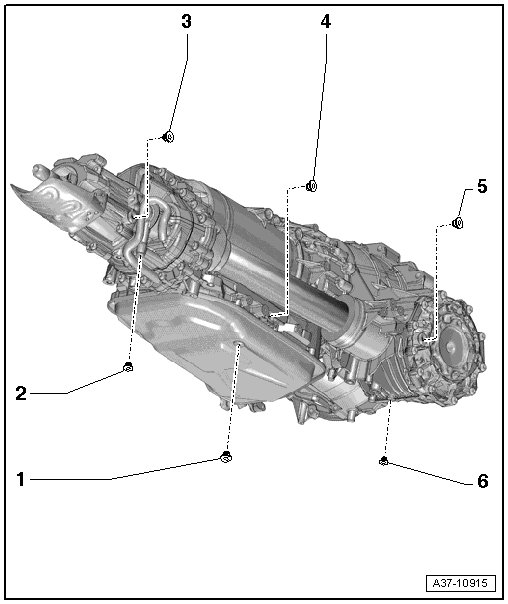

Transmission Drain and Inspection Plug Overview

Transmission Drain and Inspection Plug Overview






1 ATF Drain Plug

• 12 Nm

• Replace

2 Oil Drain Plug

• Tightening specification - 4 -

• For the transmission fluid inside the transfer case

3 Drain Plug

• Tightening specification - 1 -

• For the hole for checking and filling

• For the transmission fluid inside the transfer case

4 ATF Plug

• 30 Nm

• For the hole for checking and filling

• For the ATF in the transmission

• Removing and installing

5 Drain Plug

• Tightening specification - 2 -

• For the hole for checking and filling

• For the transmission fluid inside the front final drive

6 Oil Drain Plug

• Tightening specification - 3 -

• For the transmission fluid inside the front final drive
