Steering Column Handling and Transporting

Steering Column, Handling and Transporting


• The correct handling of the steering column must always be observed.

• Incorrect handling of steering column may cause damage to steering column and therefore lead to a safety risk.

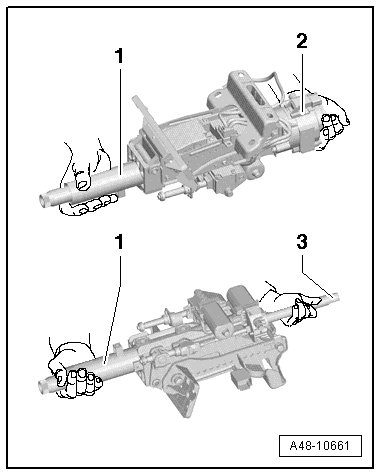

Correct Handling and Transport of Steering Column






• Transport steering column with two hands.

• Hold the steering column at the top of the steering rod tube - 1 -, or depending on the version near the dynamic steering adjuster - 2 -, or at the bottom of the steering rod tube.

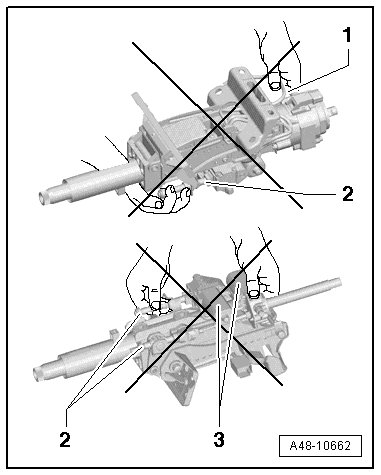

Incorrect Handling of Steering Column






Transporting at the following components leads to pre-damage to steering column:

1. Clamping lever

2. Weight compensation springs

3. Deformation element
