Passenger Side A-Pillar 6-Pin Connector Station

Passenger Side A-Pillar 6-Pin Connector Station

Removing






- Switch the ignition off.

- Disconnect the battery ground (GND) cable from the battery. Refer to => [ Battery, Disconnecting and Connecting ] Battery, Disconnecting and Connecting.

- Remove the lower right A-pillar trim..

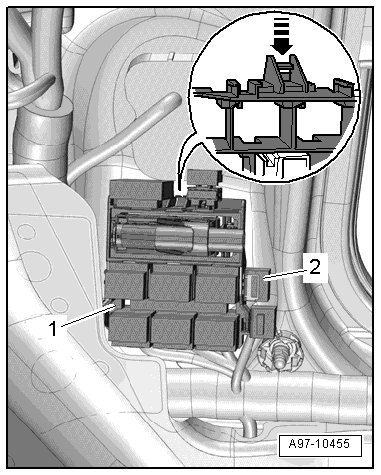

- Press the retaining clip in the direction of the - arrow - and disengage the connector station - 1 - at the A-pillar.

- Unclip the fuse holder - 2 - from the coupling station.

- Remove the relay and control modules.






- Release the retaining clips in the direction of the - arrows - and press the relay carrier - 2 - back and out of the bracket - 1 -.

• For the exact assignment of the passenger side A-pillar 6-pin connector station, see the applicable wiring diagram.

Installing

Install in reverse order of removal, observing the following:

- Install the lower right A-pillar trim panel..

- Connect battery. Required actions, refer to => [ Battery, Disconnecting and Connecting ] Battery, Disconnecting and Connecting.
