Fuse Panel C -SC- from MY 2010

Fuses

Fuse Panel C -SC- from model year 2010


Component Location Fuse Panel C -SC- from model year 2010 for models
with left-hand drive:
Below driver's instrument panel cover

Note:
• Illustration shows models with left-hand drive.






ST1 - Fuse Carrier 1, Fuses => [ Fuses in Fuse Carrier ST1 on (black) ]

ST2 - Fuse Carrier 2, Fuses => [ Fuses in Fuse Carrier ST2 on (brown) ]

ST3 - Fuse Carrier 3, Fuses => [ Fuses in Fuse Carrier ST3 on (red) ]

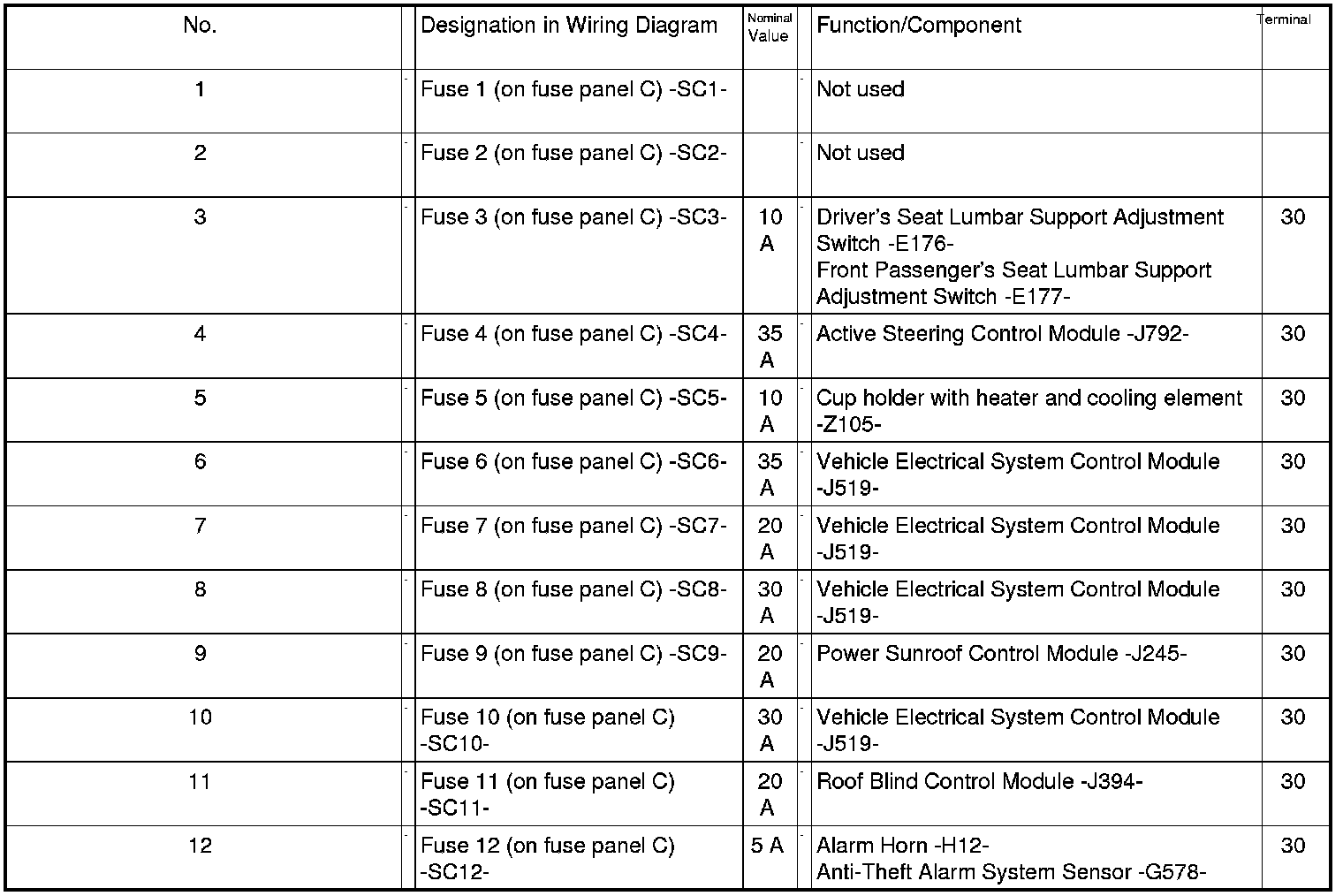

Fuses in Fuse Carrier ST1 on Fuse Panel C -SC- (black)

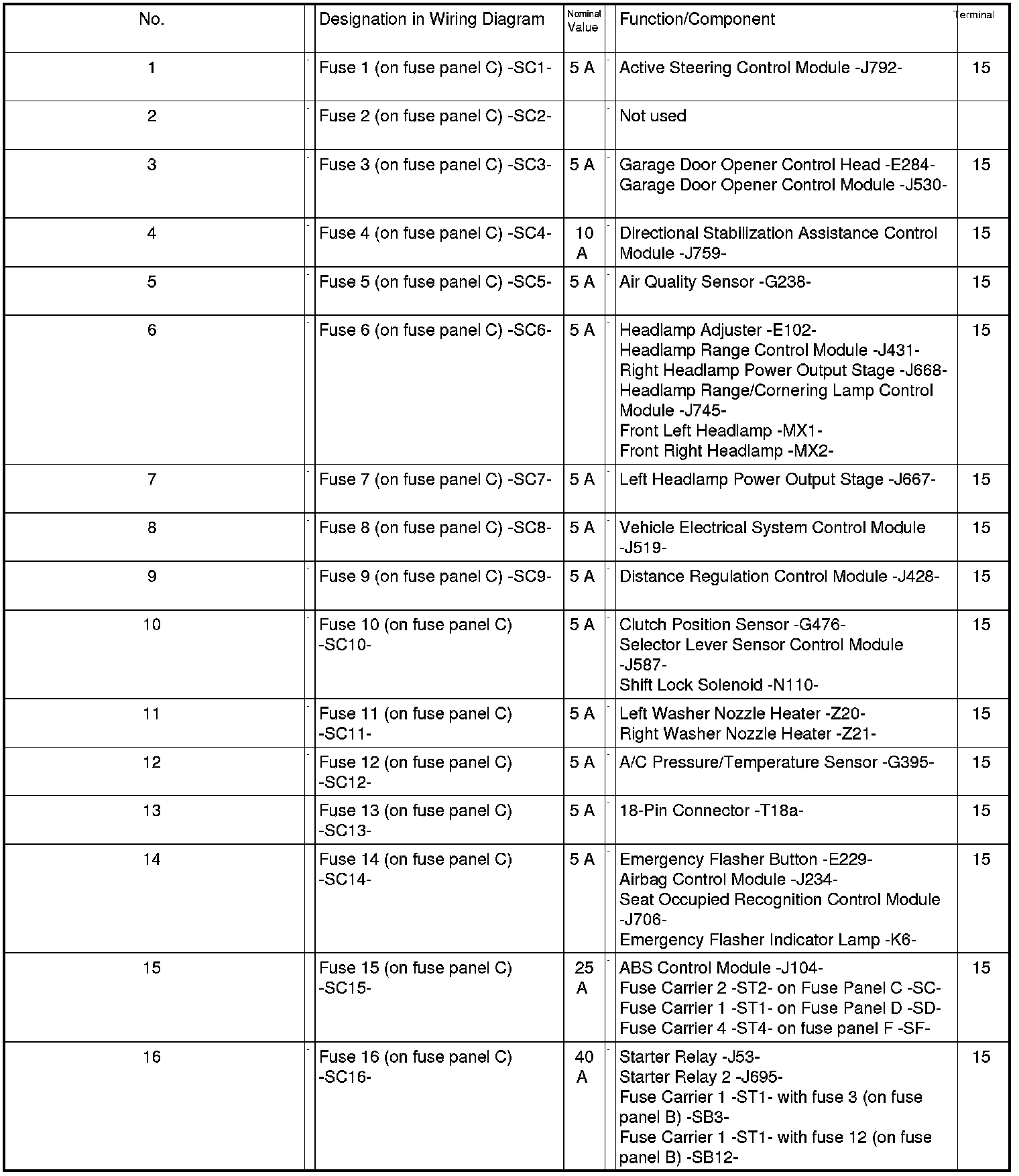

Fuses in Fuse Carrier ST2 on Fuse Panel C -SC- (brown)


1) Only models with gasoline engine
2) Only models with cylinder 4 gasoline engine with
high-voltage system (Hybrid)
3) Only models with diesel engine (without J538)
4) Only models with diesel engine (with J538)
5) Only models with left-hand drive
6) Only models without seat ventilation
7) Only models with seat ventilation

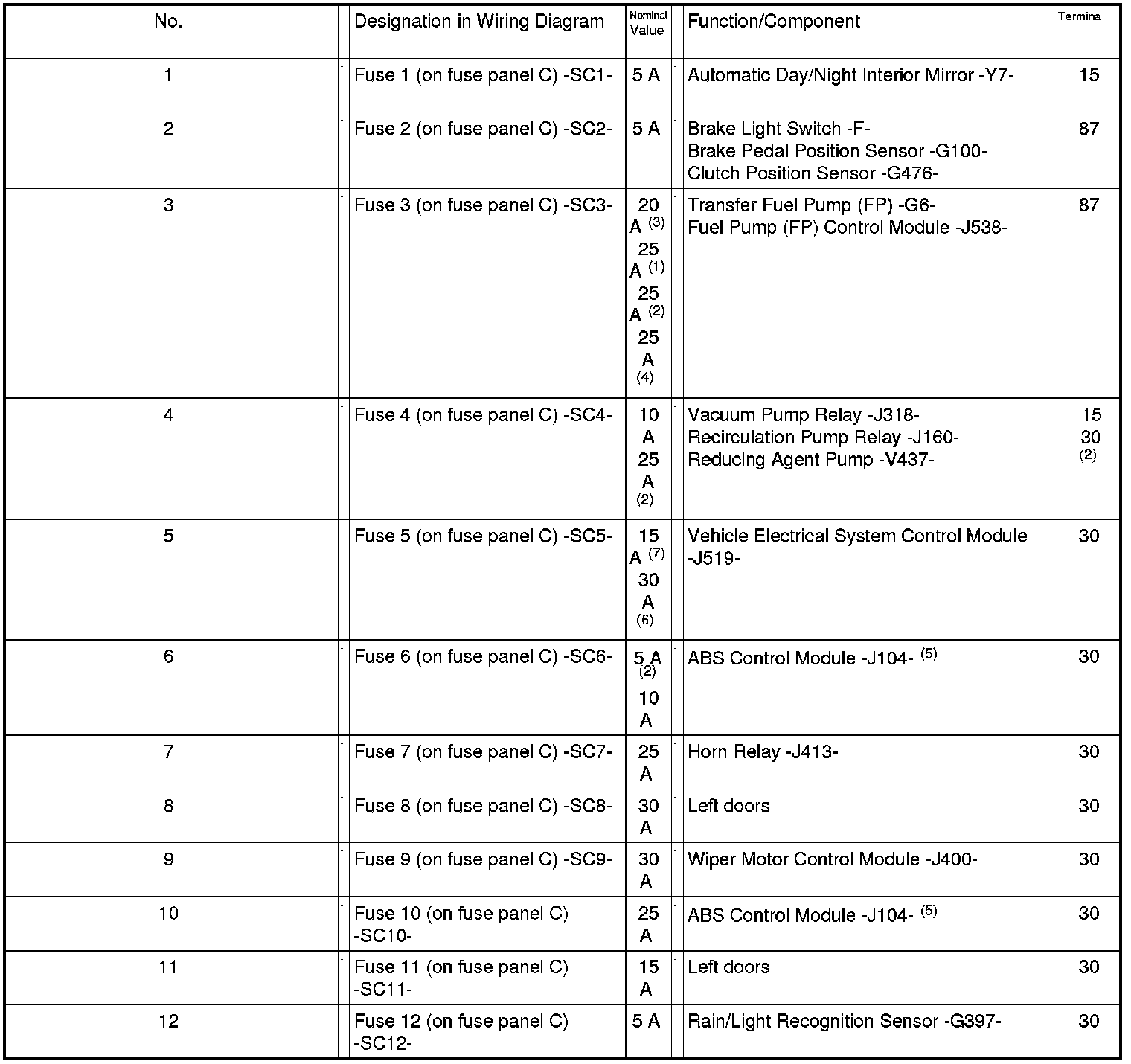

Fuses in Fuse Carrier ST3 on Fuse Panel C -SC- (red)
