Fuse Panel C -SC- Through MY 2009

Fuses

Fuse Panel C -SC- through model year 2009


Component Location Fuse Panel C -SC- through model year 2009 for models
with left-hand drive:
Below driver's instrument panel cover

Note:
• Illustration shows models with left-hand drive.






ST1 - Fuse Carrier 1, Fuses => [ Fuses in Fuse Carrier ST1 on (black) ]

ST2 - Fuse Carrier 2, Fuses => [ Fuses in Fuse Carrier ST2 on (brown) ]

ST3 - Fuse Carrier 3, Fuses => [ Fuses in Fuse Carrier ST3 on (red) ]

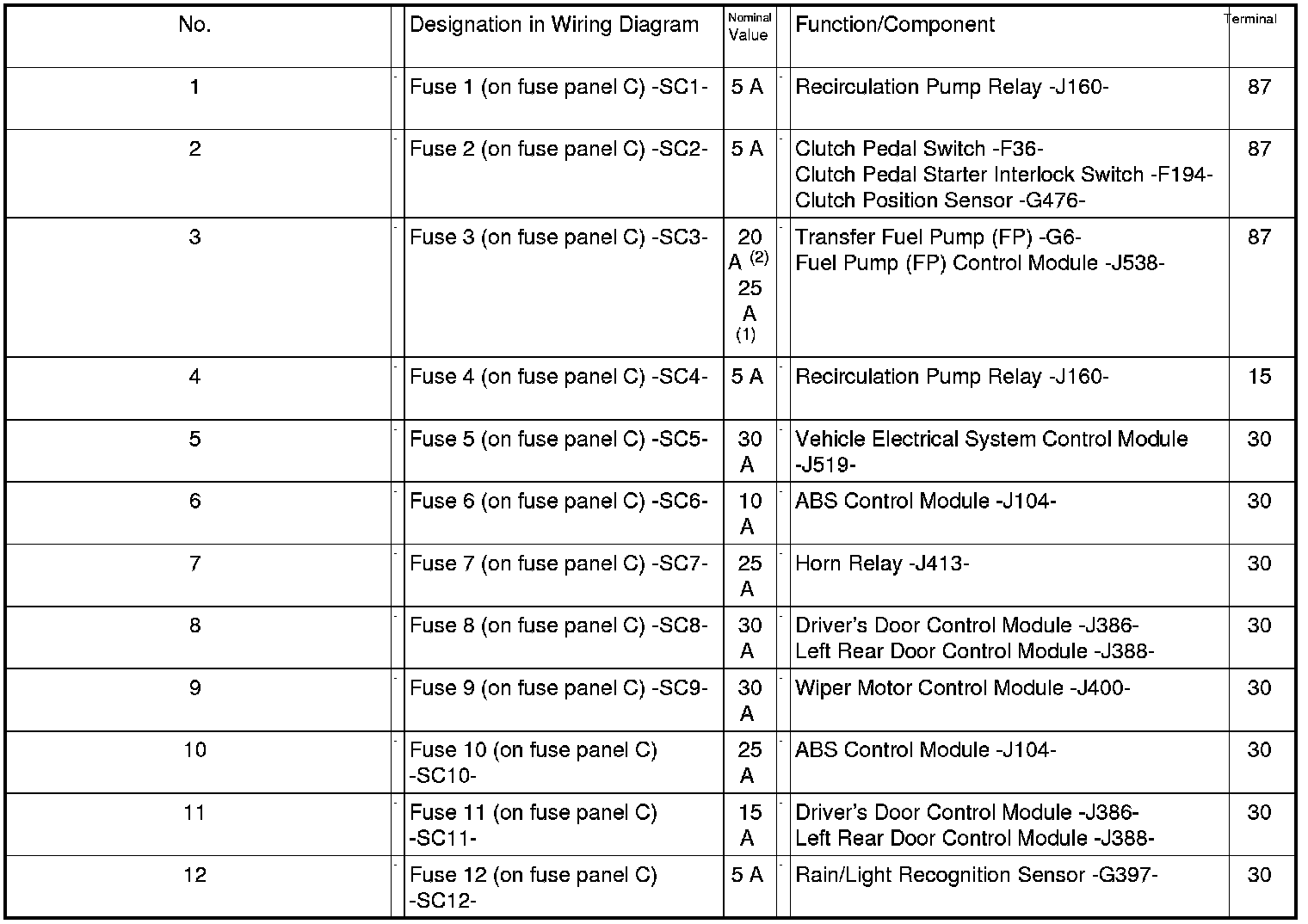

Fuses in Fuse Carrier ST1 on Fuse Panel C -SC- (black)

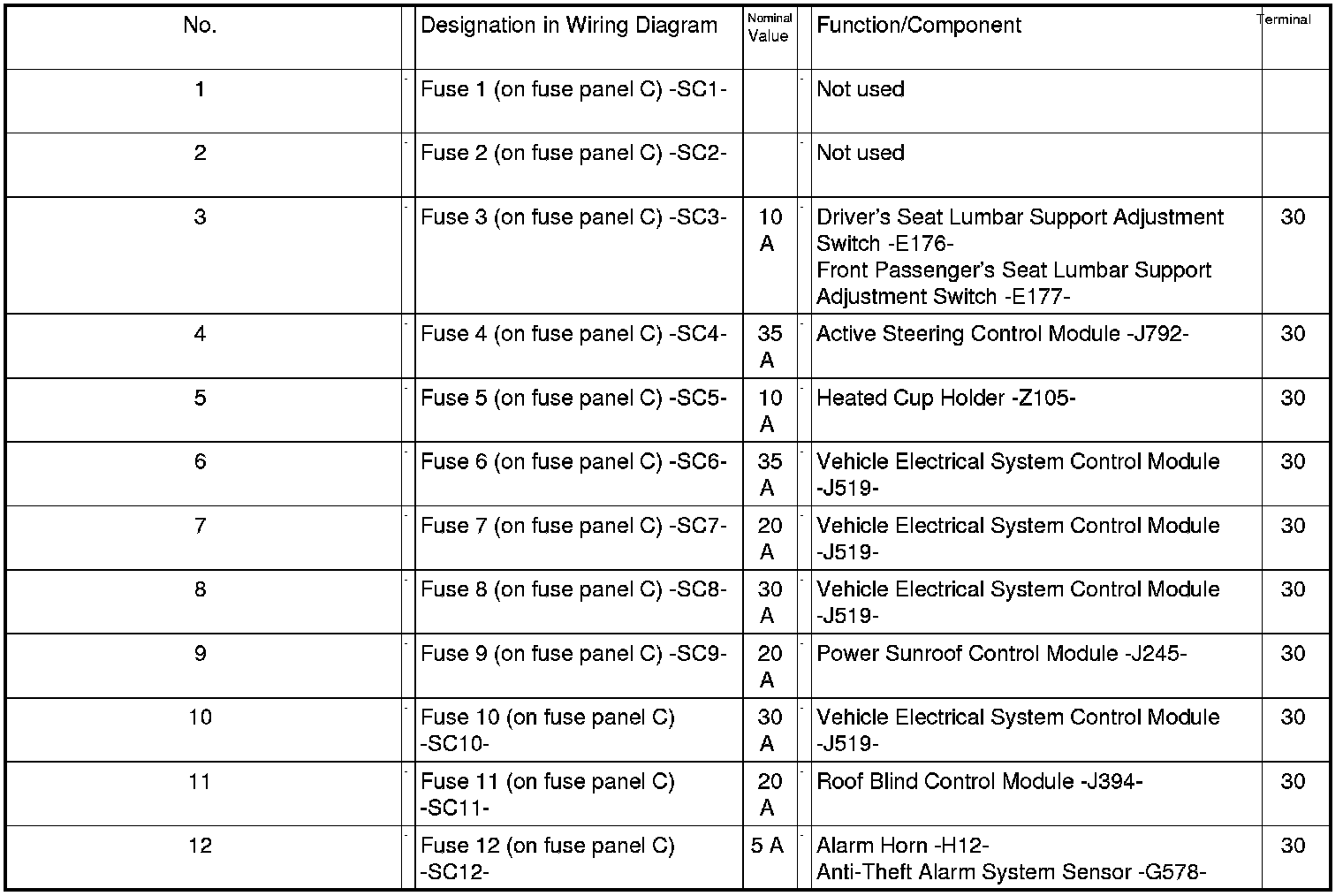

Fuses in Fuse Carrier ST2 on Fuse Panel C -SC- (brown)


1) Only models with gasoline engine
2) Only models with diesel engine

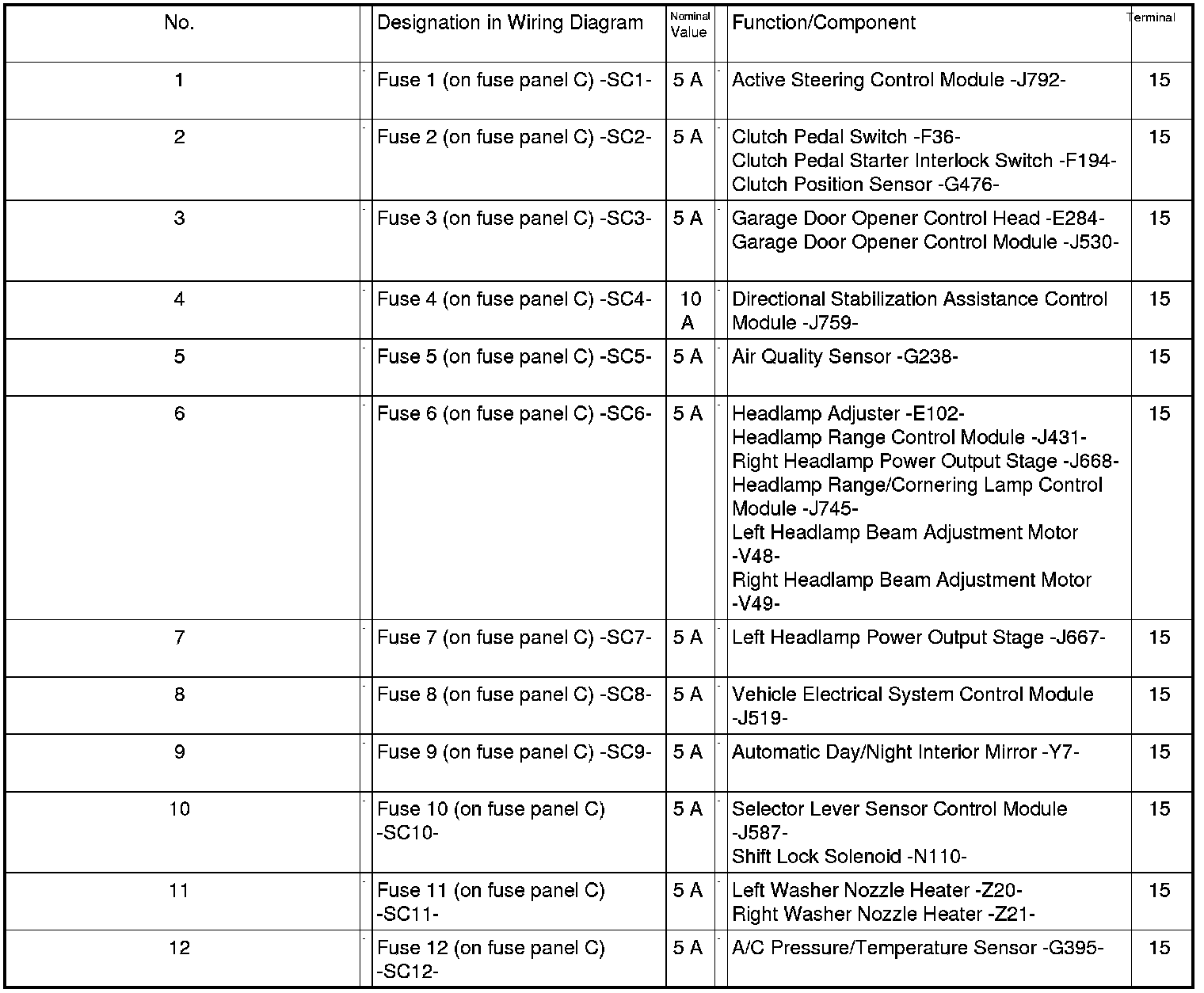

Fuses in Fuse Carrier ST3 on Fuse Panel C -SC- (red)
