Relay /fuse Panel B -SB-

Fuses

Relay /fuse panel B -SB-


Component Location Relay/Fuse Panel B -SB- for models with left-hand drive:
In Electronics Box (in plenum chamber, driver's side)
1) Only models with cylinder 4 diesel engine
2) Only models with cylinder 6 diesel engine
3) Only models with cylinder 4 gasoline engine with high-voltage system (hybrid)
4) Only models with cylinder 6 gasoline engine

Note:
• Illustration shows models with left-hand drive.

• Illustration for models with right-hand drive






K - Strip fuse for engine glow plugs -S39- (1), 60 A

K - Strip fuse for engine glow plugs -S39- (2), 80 A

K - Secondary Air Injection (AIR) Pump Fuse -S130- (3) (4), 50 A

L - Safety Fuse 1 -S131- (3), 50 A

L - NOX Sensor Fuse -S360- (1), 5 A

ST1 - Fuse Carrier 1
• Fuses for models without high-voltage system (hybrid) => [ Fuses in Fuse Carrier ST1 on (black) for models without High-Voltage System (hybrid) ]

• Fuses for models with high-voltage system (hybrid) => [ Fuses in Fuse Carrier ST1 on (black) for models with High-Voltage System (hybrid) ]


Component Location Relay/Fuse Panel B -SB- for models with right-hand drive:
In Electronics Box (in plenum chamber, driver's side)
5) Only models with cylinder 4 diesel engine
6) Only models with cylinder 6 diesel engine
7) Only models with cylinder 4 gasoline engine with high-voltage system (hybrid)
8) Only models with cylinder 6 gasoline engine

Note:
• Illustration shows models with right-hand drive.

• Illustration for models with left-hand drive






K - Strip fuse for engine glow plugs -S39- (5), 60 A

K - Strip fuse for engine glow plugs -S39- (6), 80 A

K - Secondary Air Injection (AIR) Pump Fuse -S130- (7) (8), 50 A

L - Safety Fuse 1 -S131- (7), 50 A

L - NOX Sensor Fuse -S360- (5), 5 A

ST1 - Fuse Carrier 1
• Fuses for models without high-voltage system (hybrid) => [ Fuses in Fuse Carrier ST1 on (black) for models without High-Voltage System (hybrid) ]

• Fuses for models with high-voltage system (hybrid) => [ Fuses in Fuse Carrier ST1 on (black) for models with High-Voltage System (hybrid) ]

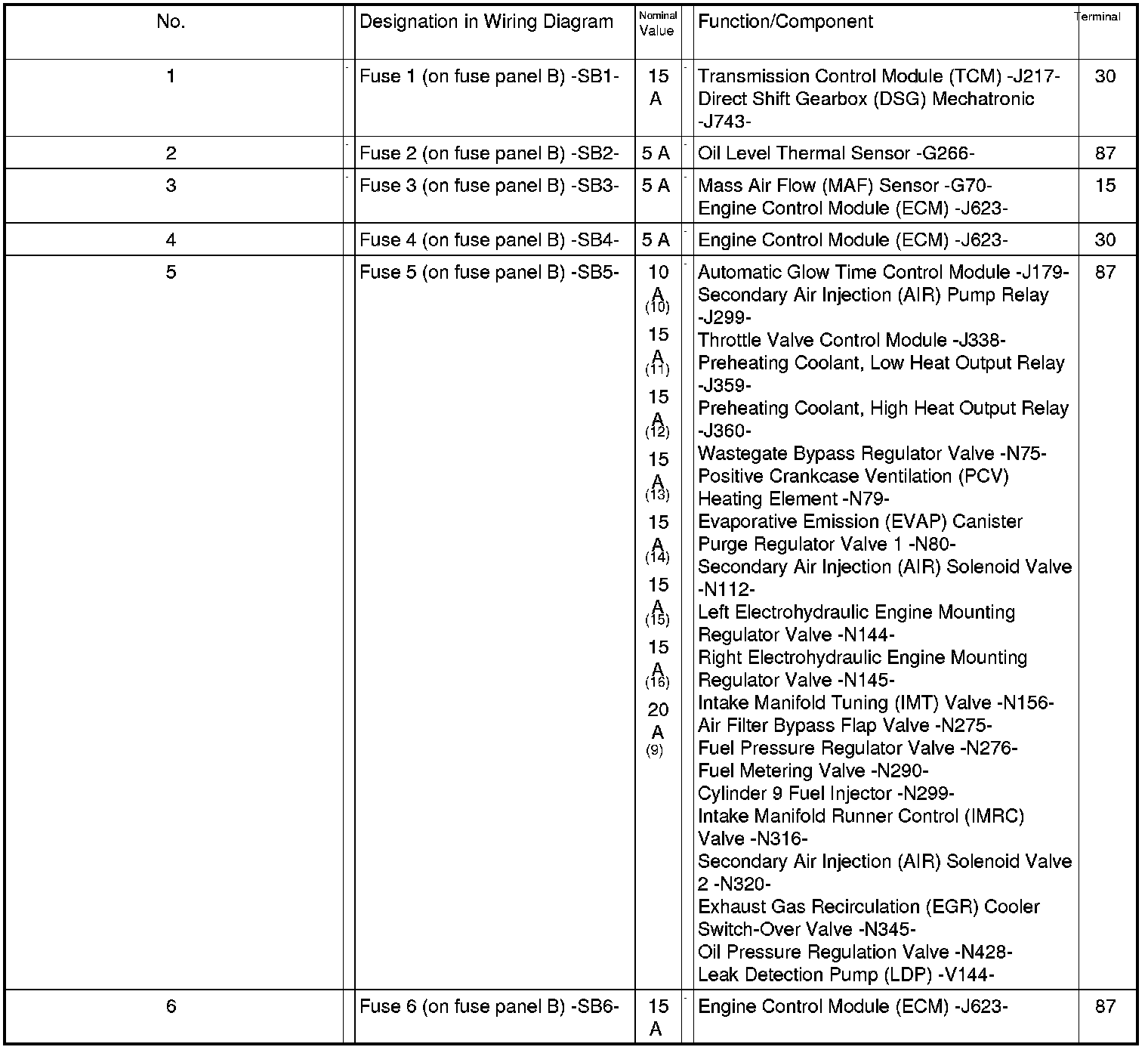

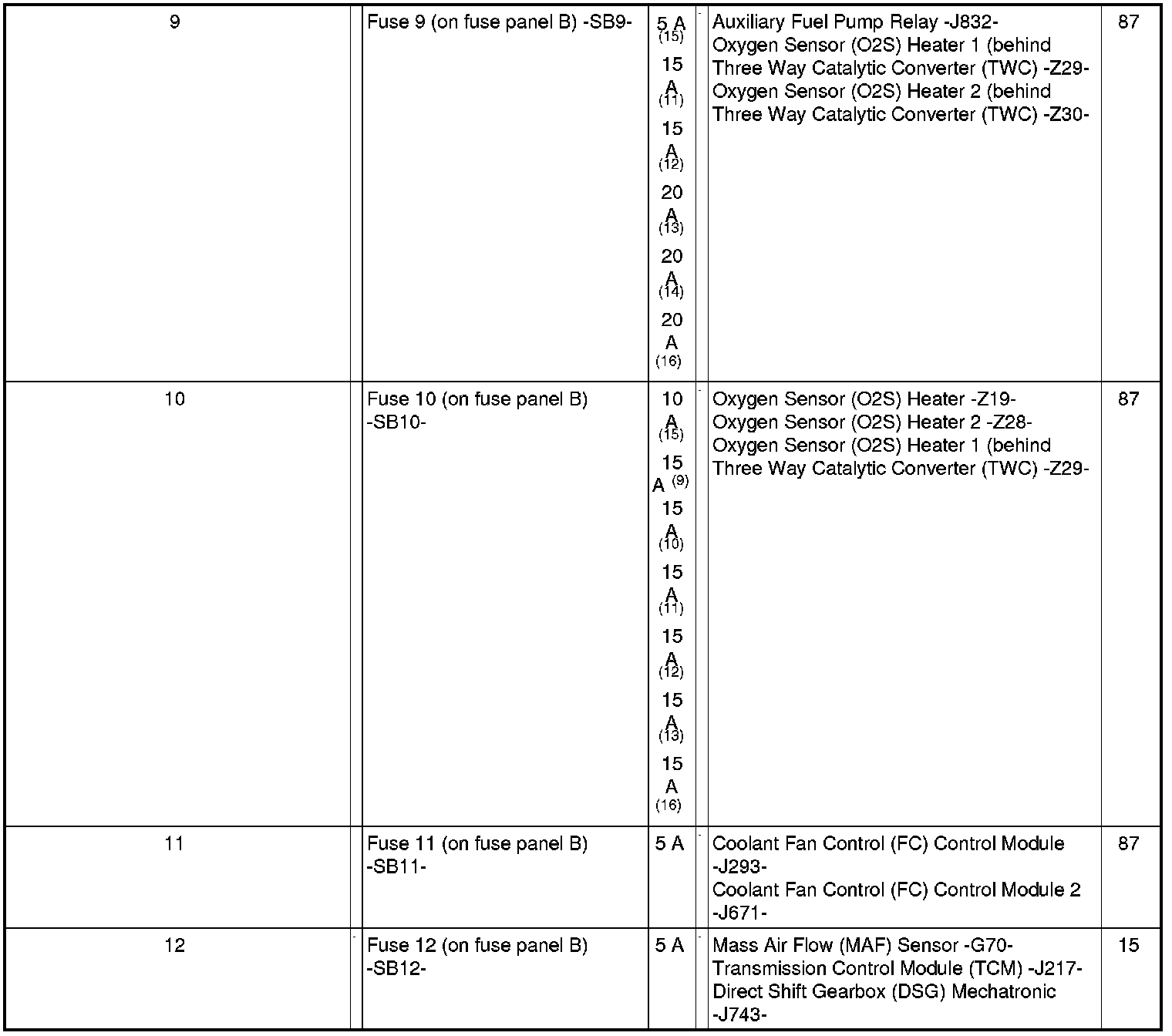

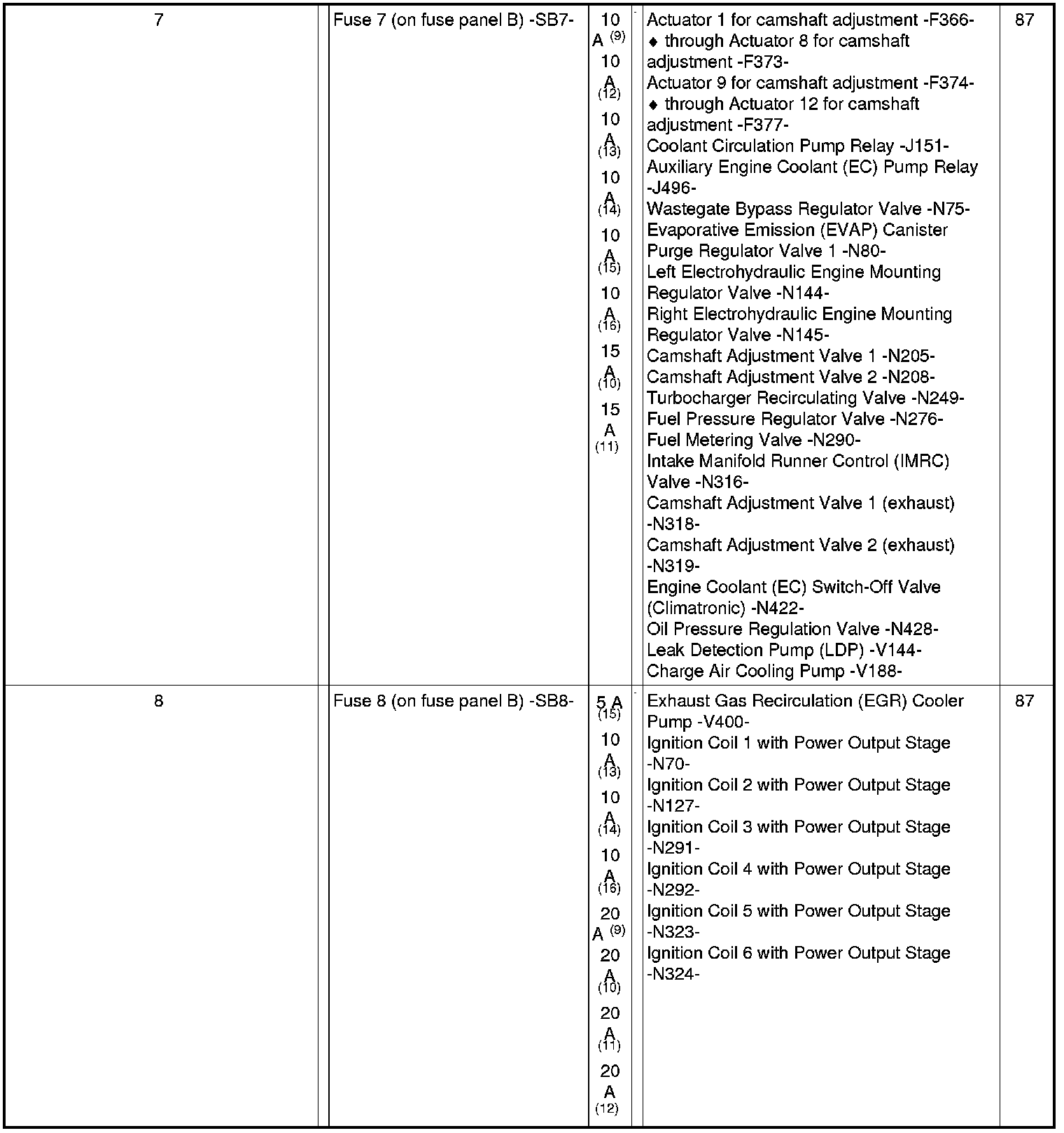

Fuses in Fuse Carrier ST1 on Fuse Panel B -SB- (black) for models without High-Voltage System (hybrid)


Fuse Colors
35 A - green-blue
30 A - green
25 A - white
20 A - yellow
15 A - blue
10 A - red
7,5 A - brown
5 A - beige
9) Only models with cylinder 4 gasoline engine (1.8L TFSI)
10) Only models with cylinder 4 gasoline engine (2.0L TFSI)
11) Only models with cylinder 6 gasoline engine (3.2L FSI)
12) Only models with cylinder 6 gasoline engine (3.0L TFSI)
13) Only models with cylinder 4 diesel engine (2.0L TDI)
14) Only models with cylinder 4 diesel engine (2.0L TDI - EU3)
15) Only models with cylinder 4 diesel engine (2.0L TDI - Generation 2)
16) Only models with cylinder 6 diesel engine

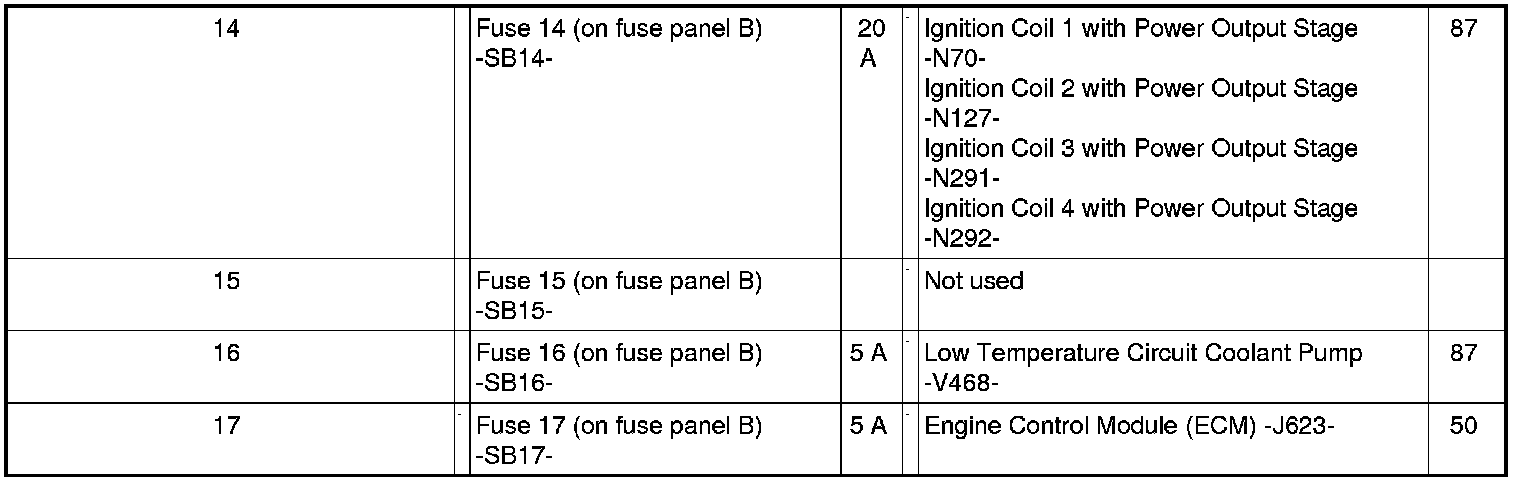

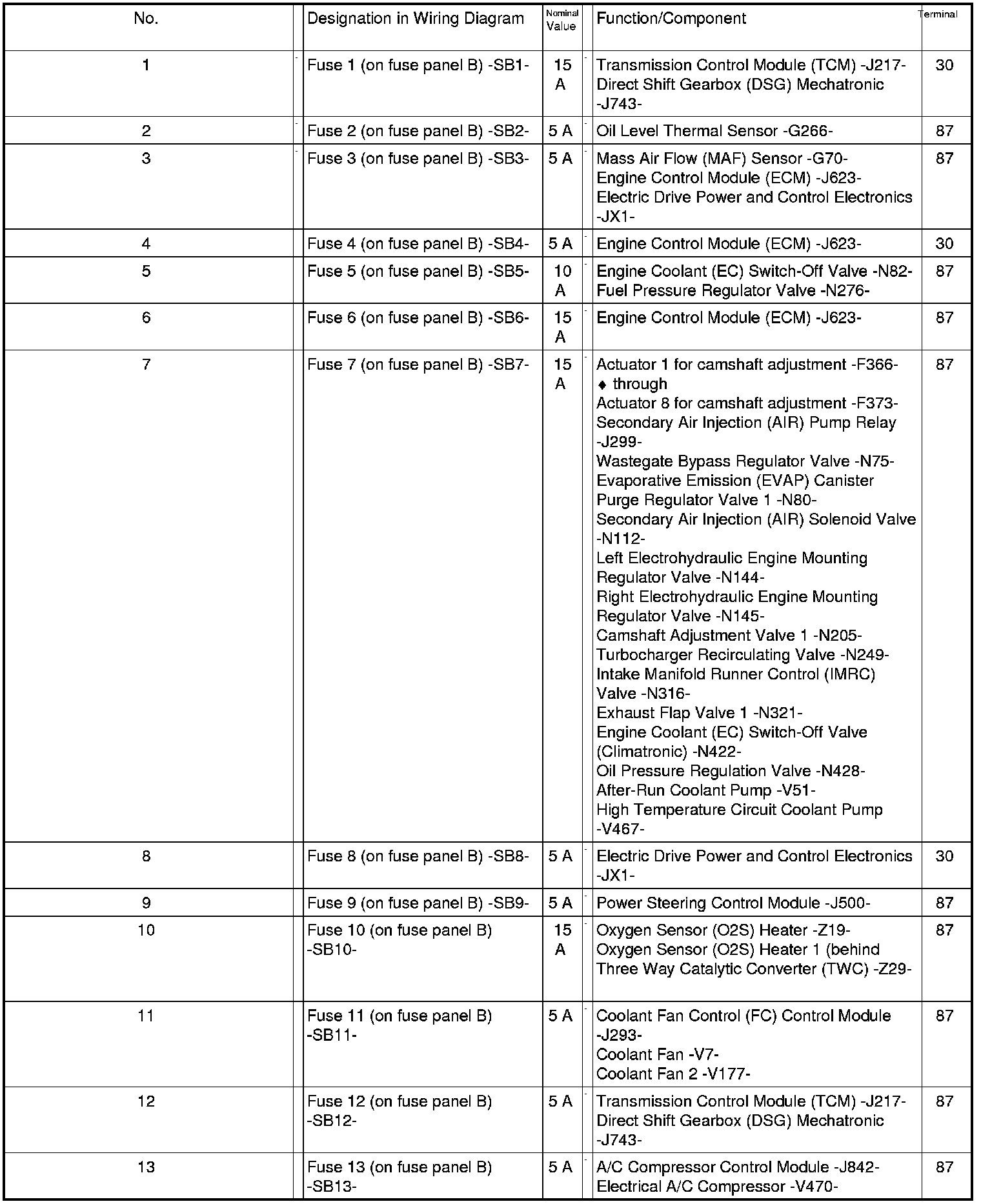

Fuses in Fuse Carrier ST1 on Fuse Panel B -SB- (black) for models with High-Voltage System (hybrid)


Fuse Colors
35 A - green-blue
30 A - green
25 A - white
20 A - yellow
15 A - blue
10 A - red
7,5 A - brown
5 A - beige
