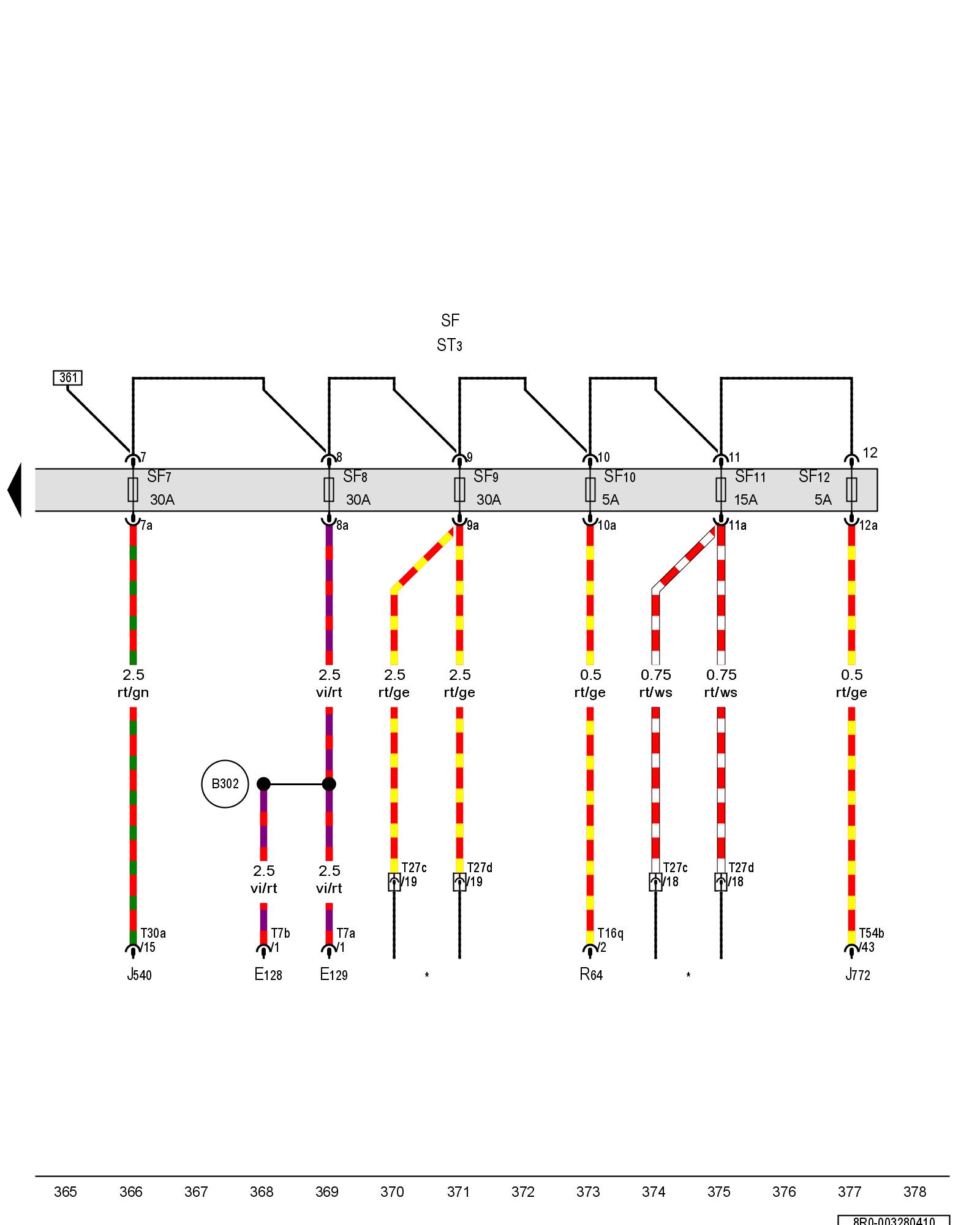

Diagram 3/28 (Tracks 365-378)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Fuse panel 3





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E128 - Left rear heated seat regulating switch

E129 - Right rear heated seat regulating switch

J540 - Electromechanical parking brake control module

J772 - Rearview camera system control module

R64 - Auxiliary heater radio receiver

SF - Fuse panel F Overview of Fuses

ST3 - Fuse panel 3

SF7 - Fuse 7 (on fuse panel F) Overview of Fuses

SF8 - Fuse 8 (on fuse panel F) Overview of Fuses

SF9 - Fuse 9 (on fuse panel F) Overview of Fuses

SF10 - Fuse 10 (on fuse panel F) Overview of Fuses

SF11 - Fuse 11 (on fuse panel F) Overview of Fuses

SF12 - Fuse 12 (on fuse panel F) Overview of Fuses

T7a - 7-pin connector

T7b - 7-pin connector

T16q - 16-pin connector

T27c - 27-pin connector, Right A-pillar, bottom

T27d - 27-pin connector, Right B-pillar, bottom

T30a - 30-pin connector

T54b - 54-pin connector

(B302) - Positive connection 6 (30) (in main wiring harness)

* - Refer to applicable convenience system wiring diagram
