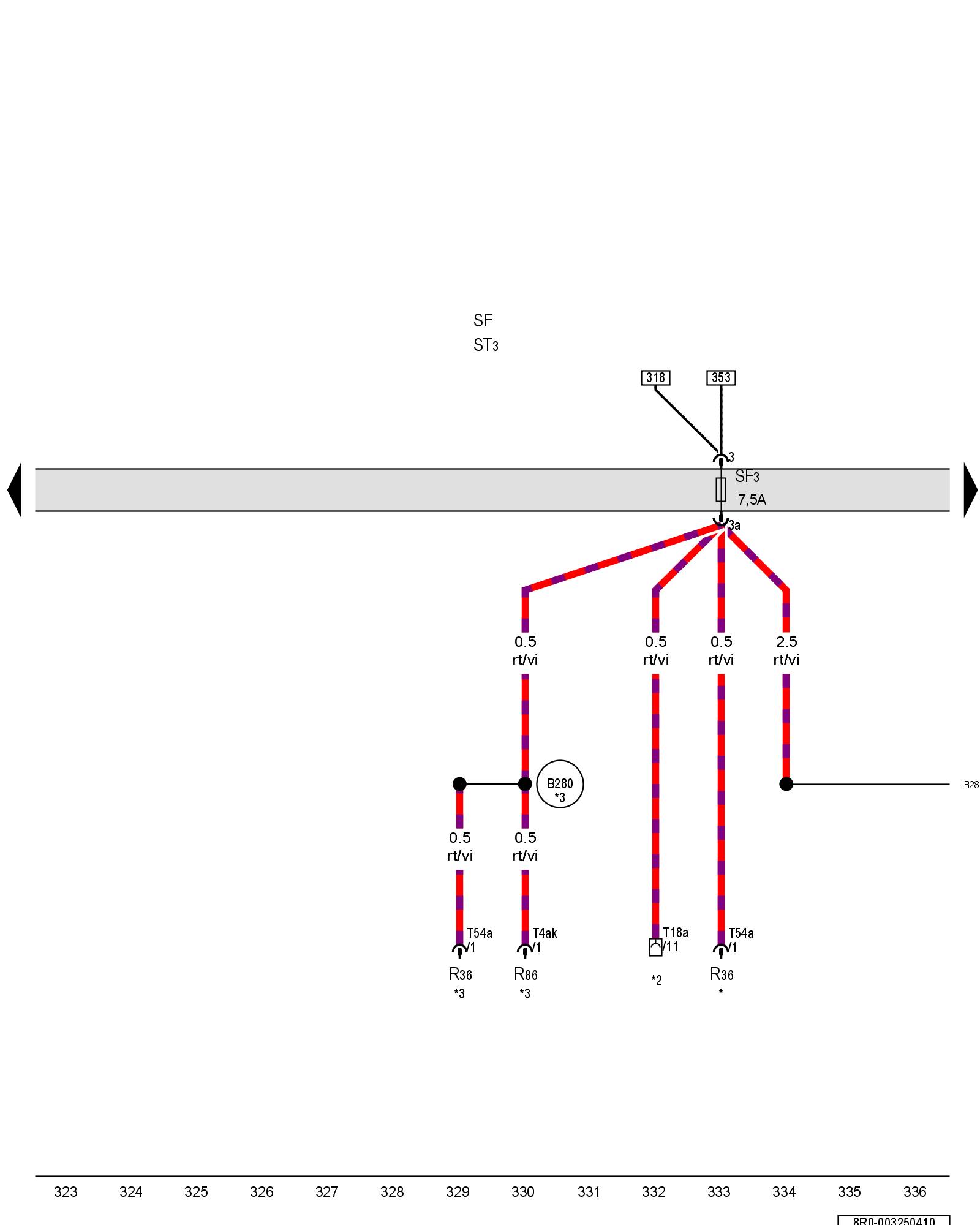

Diagram 3/25 (Tracks 323-336)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Fuse panel F, Fuse panel 3





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

R36 - Telephone transceiver

R86 - Cellular telephone amplifier

SF - Fuse panel F Overview of Fuses

ST3 - Fuse panel 3

SF3 - Fuse 3 (on fuse panel F) Overview of Fuses

T4ak - 4-pin connector

T18a - 18-pin connector

T54a - 54-pin connector

(B280) - Positive connection 4 (15a) (in main wiring harness)

(B281) - Positive connection 5 (15a) (in main wiring harness)

* - Only for vehicles with US equipment

*2 - Only for vehicles with cell phone preparation

*3 - Only for vehicles without US equipment
