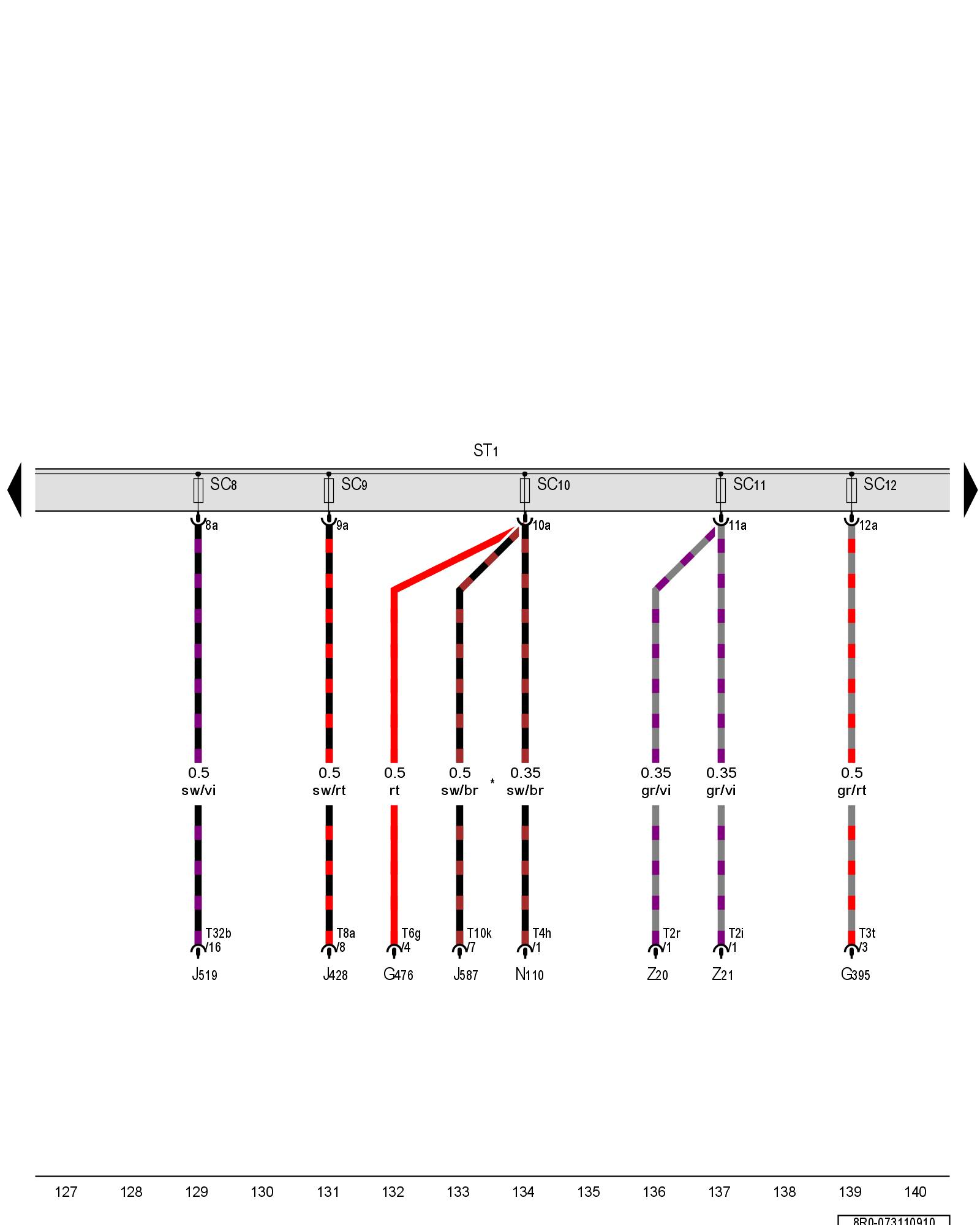

Diagram 73/11 (Tracks 127-140)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Fuse panel 1, Fuse 8 (on fuse panel C), Fuse 12 (on fuse panel C)





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G395 - A/C pressure/temperature sensor

G476 - Clutch position sensor Clutch Position Sensor and Brake Light Switch

J428 - Distance regulation control module

J519 - Vehicle electrical system control module

J587 - Selector lever sensor system control module Selector Mechanism Assembly Overview

N110 - Shift lock solenoid Selector Mechanism Assembly Overview

ST1 - Fuse panel 1

SC8 - Fuse 8 (on fuse panel C) Overview of Fuses

SC9 - Fuse 9 (on fuse panel C) Overview of Fuses

SC10 - Fuse 10 (on fuse panel C) Overview of Fuses

SC11 - Fuse 11 (on fuse panel C) Overview of Fuses

SC12 - Fuse 12 (on fuse panel C) Overview of Fuses

T2i - Double connector

T2r - Double connector

T3t - 3-pin connector

T4h - 4-pin connector

T6g - 6-pin connector

T8a - 8-pin connector Locations

T10k - 10-pin connector

T32b - 32-pin connector Vehicle Electrical System Control Module -J519-

Z20 - Left washer nozzle heater

Z21 - Right washer nozzle heater

* - Omitted as a running change
