Fastener Tightening Specifications






Fastener Tightening Specifications

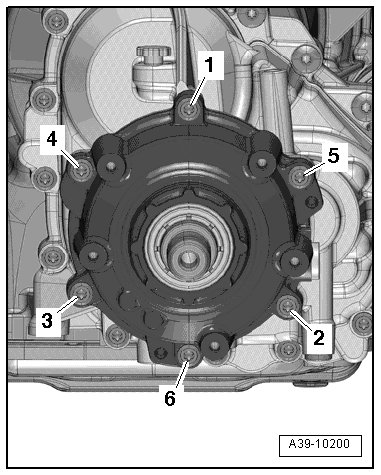

Front Final Drive Cover - Tightening Specifications and Sequence

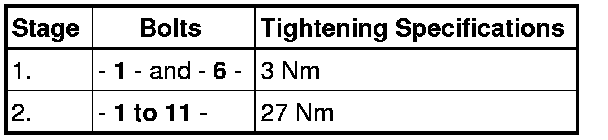

- Tighten the bolts in two steps in the sequence shown:






Center Differential Housing - Tightening Specification and Sequence





• Replace the bolts for the center differential housing.

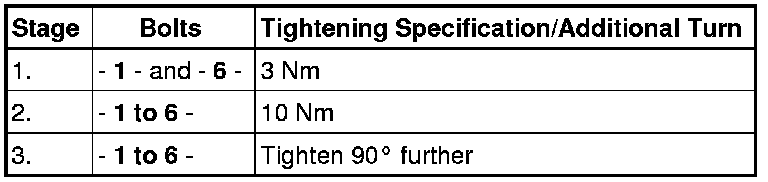

- Tighten the bolts in three steps in the sequence shown:
