Washer Fluid Level Switch: Service and Repair

Windshield Washer Fluid Level Sensor (G33)

Special tools, testers and auxiliary items required

• Reservoir

Removing

- Switch off ignition and remove ignition key.

- Remove left front wheel.

- Remove left front wheel housing liner..

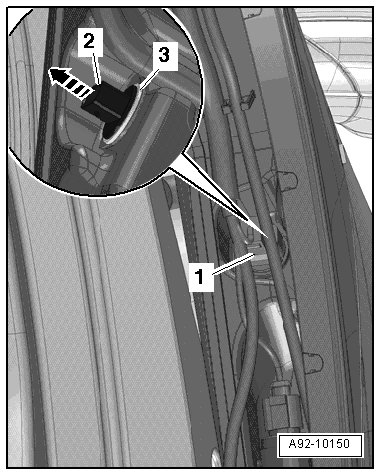

- Disconnect the electrical connector - 1 -.






- Place a reservoir under the washer fluid reservoir.

- Remove the windshield washer fluid level sensor - 2 - from the washer fluid reservoir, in the direction of the - arrow -.

Installing

Install in reverse order of removal, observing the following:

- Check the sealing grommet - 3 - for damage.

- Install left front wheel house liner..
