Fuel Pump (FP) Control Module (J538)

Fuel Pump (FP) Control Module (J538)

Removing

- Follow all safety precautions. Refer to => [ Safety Precautions ] Service Precautions.

- Follow the guidelines for cleanliness. Refer to => [ Clean Working Conditions ] Clean Working Conditions.

- Move the passenger seat all the way forward if necessary.


Risk of destroying electronic components when disconnecting the battery.

• Observe measures for disconnecting battery.

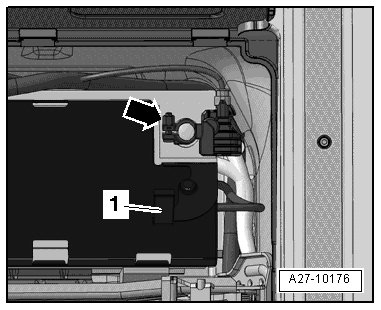

- Disconnect the battery - arrow -.






- Remove the right 1/3 rear seat.






- Remove the bolts - arrows - and remove the locking flange cover - 1 -.

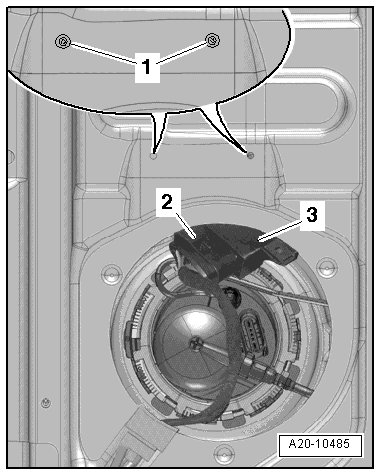

- Lift the insulation mat and remove the bolts - 1 -.






- Pull the FP control module - 3 - in between the fuel tank and the vehicle underbody.

- Disconnect the connector - 2 - and remove the FP control module.

Installing

• Tightening specification, refer to => [ Fuel Delivery Unit and Fuel Level Sensor Overview ] Fuel Delivery Unit and Fuel Level Sensor Overview.

Install in reverse order, paying attention to the following:

- Install the right locking flange cover. Refer to => [ Locking Flange Cover - Tightening Specifications ] Fuel Tank With Attachments Overview.

- Install the right 1/3 rear seat.

- Connect the battery and observe safety precautions after connecting battery.
