Voltage Stabilizer -J532-







Control modules in interior and rear part of vehicle

Voltage Stabilizer -J532-

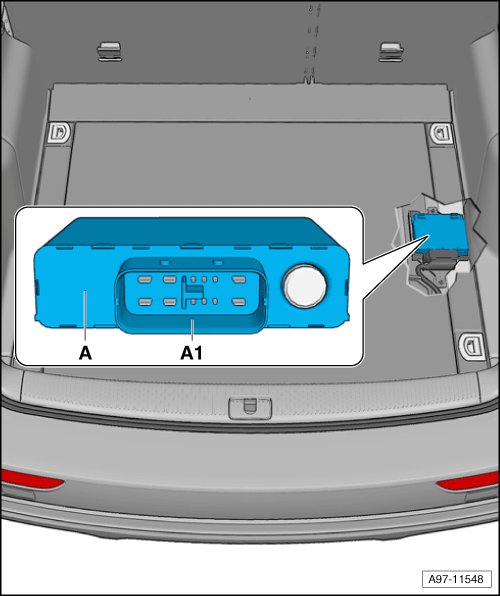

Component Location:
In luggage compartment, right





1 - Voltage Stabilizer -J532-

2 - 12-Pin Connector -T12aa-
