Function Description
Function Description
Function Description

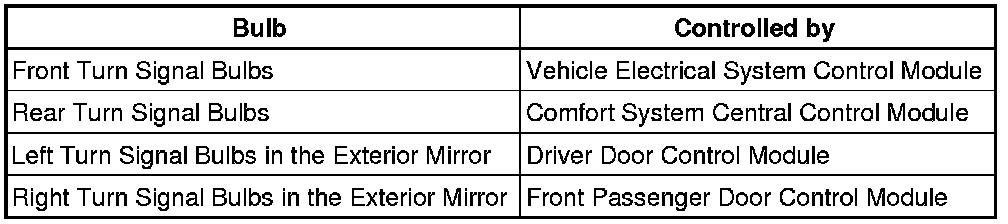

The bulbs are controlled by various control modules.
