Function Description






Function Description

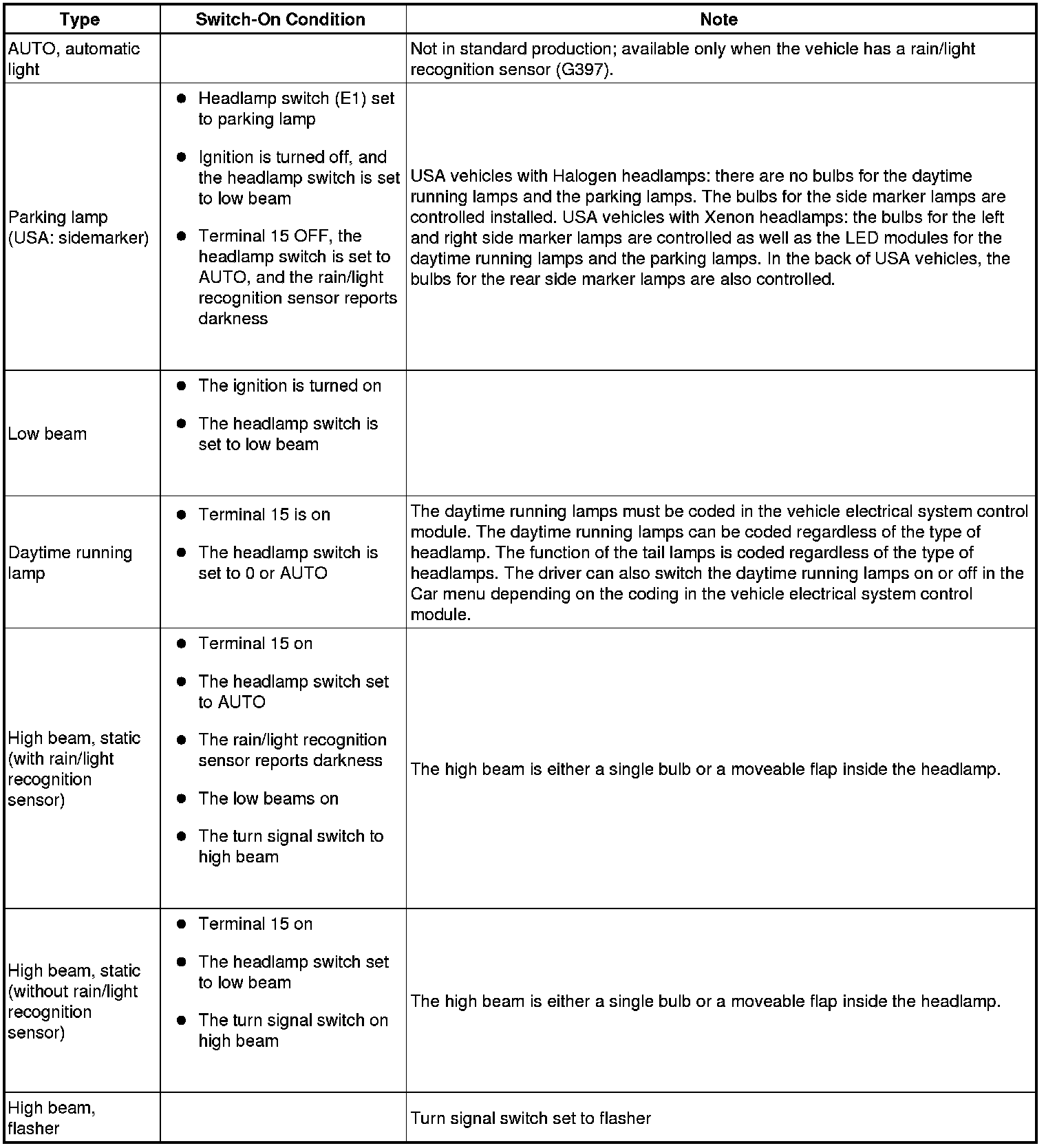

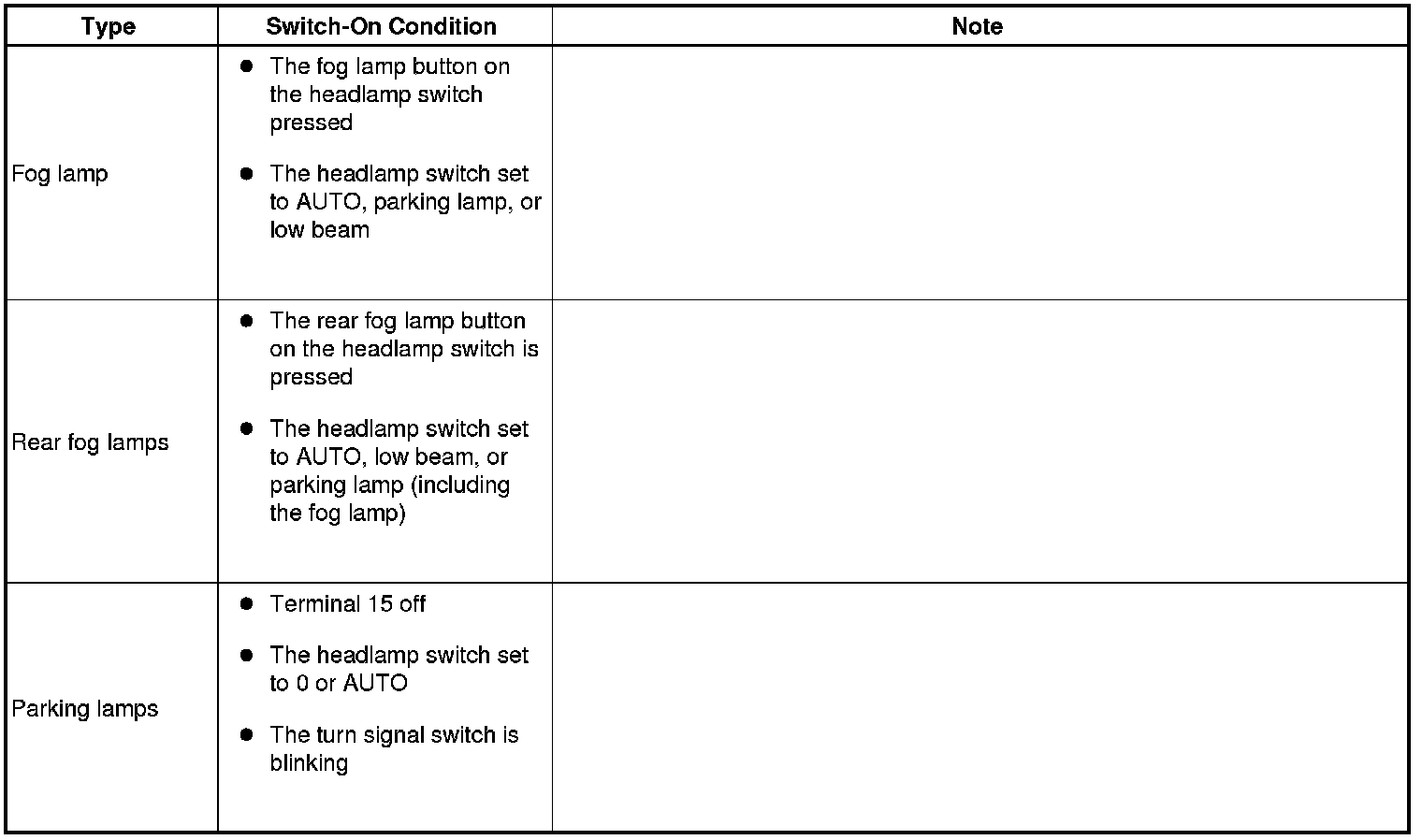

The vehicle electrical system control module (J519) reads the position of the headlamp switch (E1).
