Engine, Support With Engine Support Bridge

Engine, Support with Engine Support Bridge

Special tools, testers and auxiliary items required

• Engine Support Bridge (10 - 222 A)

Supporting

- Remove the engine cover - arrows -.

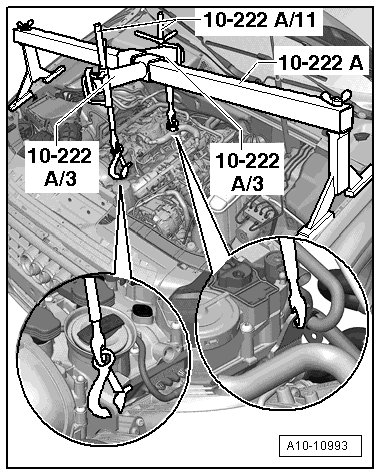

- Install the (10 - 222 A) and the adapters (10 - 222 A /3) on the left and right suspension strut towers, as illustrated.






- Engage the spindles (10 - 222 A /11) to the engine lifting eyes.

- Lightly pretension engine with spindles.
