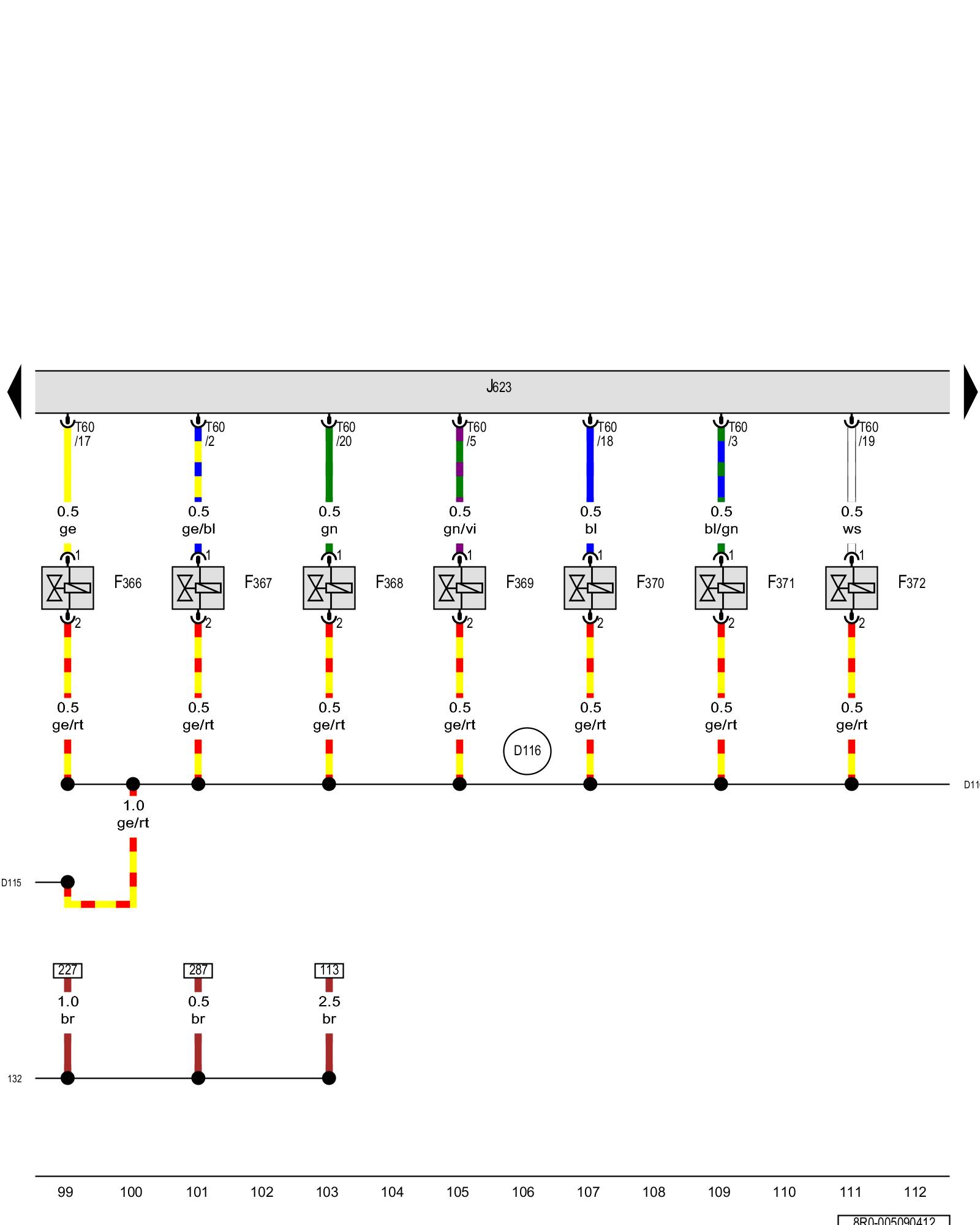

Diagram 5/9 (Tracks 99-112)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Cam adjustment actuator 1, Cam adjustment actuator 6, Cam adjustment actuator 7





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

F366 - Cam adjustment actuator 1 Locations

F367 - Cam adjustment actuator 2 Locations

F368 - Cam adjustment actuator 3 Locations

F369 - Cam adjustment actuator 4 Locations

F370 - Cam adjustment actuator 5 Locations

F371 - Cam adjustment actuator 6 Locations

F372 - Cam adjustment actuator 7 Locations

J623 - Engine control module Control Modules in Front Part Of Vehicle

T60 - 60-pin connector Locations

(132) - Ground connection 3 (in engine compartment wiring harness)

(D115) - Connection (13) (in engine compartment wiring harness)

(D116) - Connection (14) (in engine compartment wiring harness)
