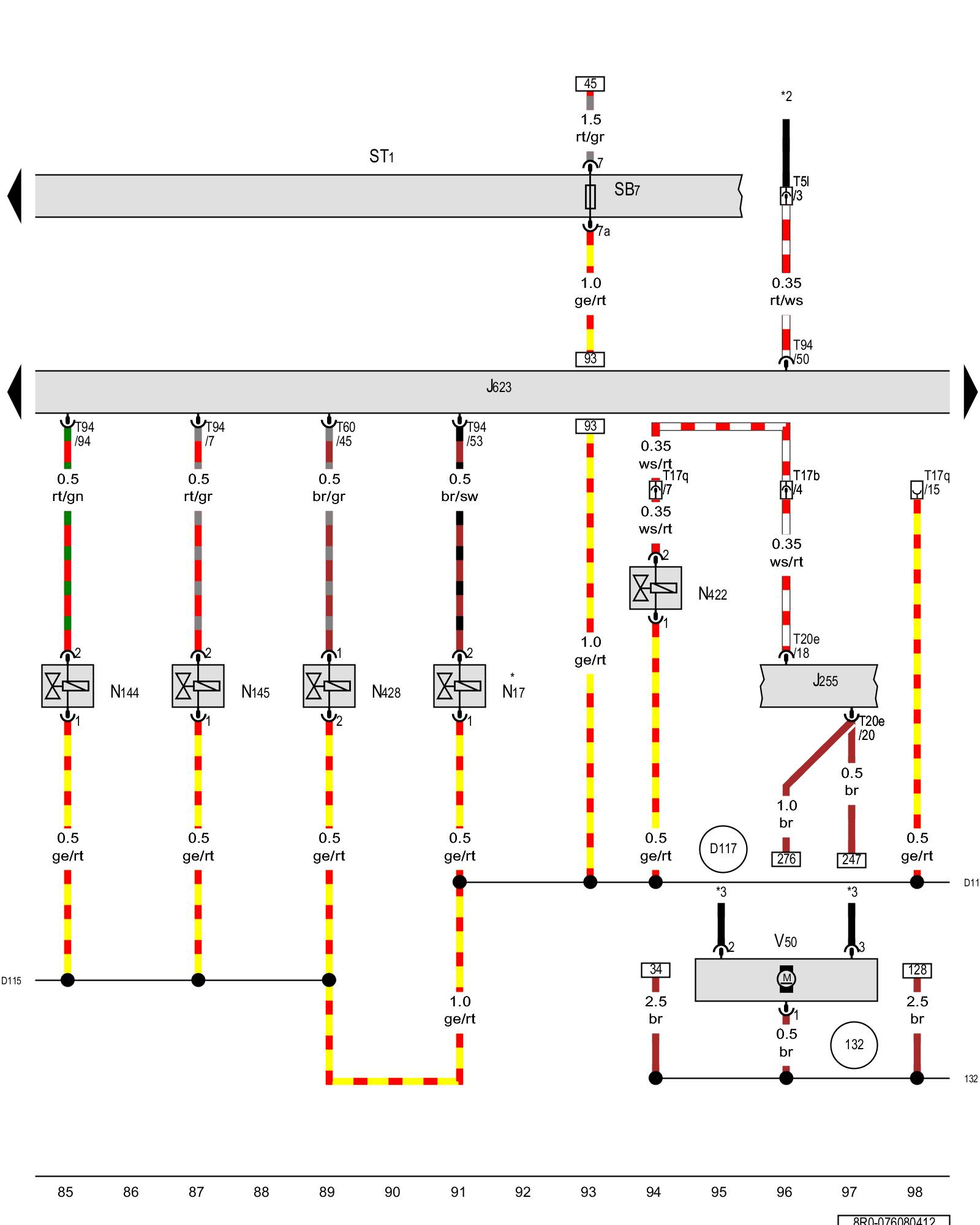

Diagram 76/8 (Tracks 85-98)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Cold start injector, Left electrohydraulic engine mount solenoid valve, Right electrohydraulic engine mount solenoid valve, Climatronic refrigerant shut-off valve, Oil pressure regulation valve





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J255 - Climatronic control module Overview of Control Modules in interior of vehicle

J623 - Engine control module Control Modules in Front Part Of Vehicle

N17 - Cold start injector

N144 - Left electrohydraulic engine mount solenoid valve

N145 - Right electrohydraulic engine mount solenoid valve

N422 - Climatronic refrigerant shut-off valve A/C System Outside Pass Compartment

N428 - Oil pressure regulation valve Locations

ST1 - Fuse panel 1

SB7 - Fuse 7 (on fuse panel B) Overview Of Fuses

T5l - 5-pin connector, in the engine compartment

T17b - 17-pin connector, blue Overview Of Connector Stations

T17q - 17-pin connector, red Overview Of Connector Stations

T20e - 20-pin connector Climatronic Control Module -J255-

T60 - 60-pin connector Locations

T94 - 94-pin connector Locations

V50 - Coolant recirculation pump Locations

(132) - Ground connection 3 (in engine compartment wiring harness)

(D115) - Connection (13) (in engine compartment wiring harness)

(D117) - Connection (15) (in engine compartment wiring harness)

* - Only for vehicles with Flex Fuel

*2 - Refer to applicable coolant fan wiring diagram

*3 - Refer to applicable A/C system wiring diagram
