Diagram 76/6 (Tracks 57-70)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

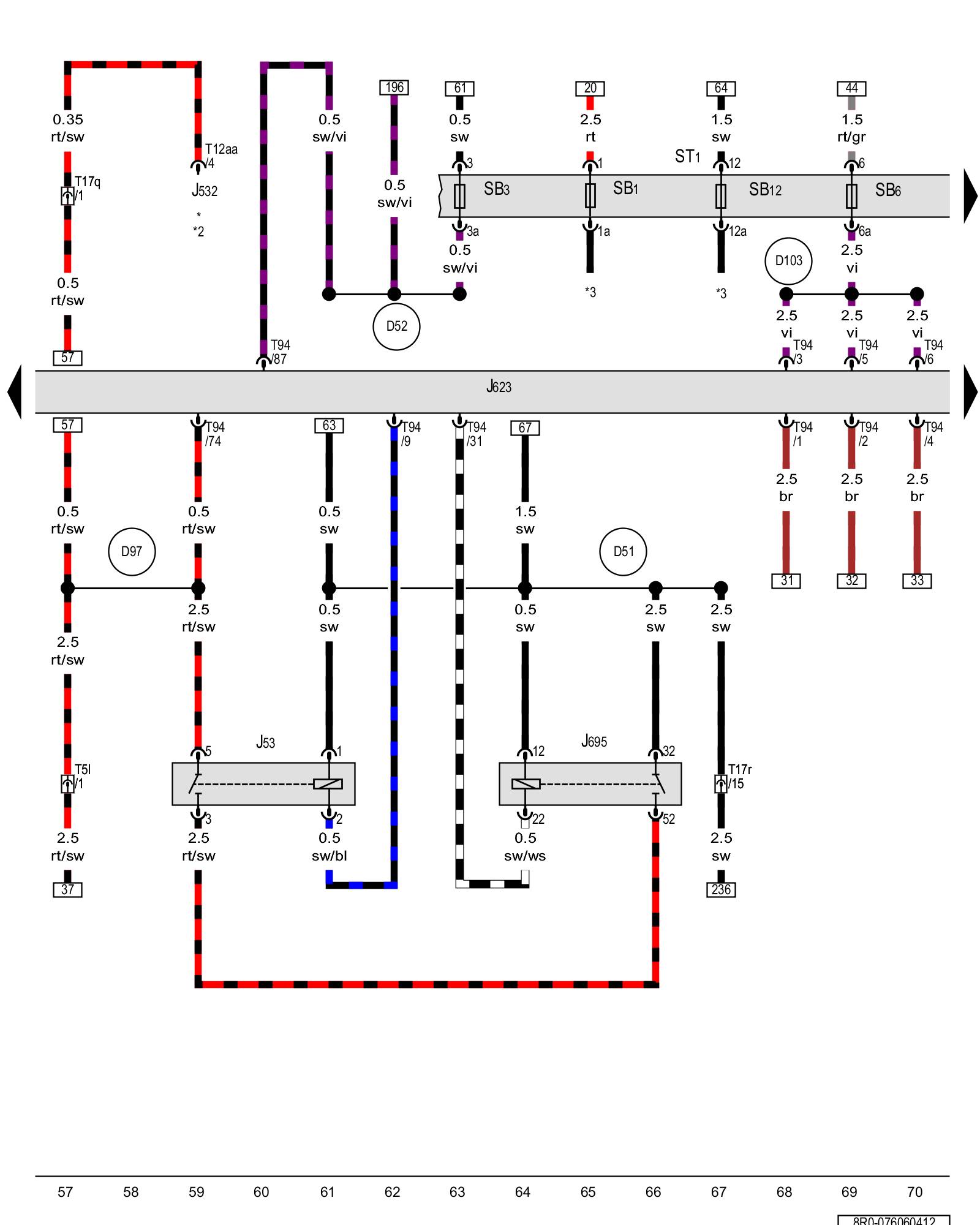

Starter relay, Relay 2 for starter





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J53 - Starter relay Overview of Relay

J532 - Voltage stabilizer Control Modules in rear part of vehicle, overview

J623 - Engine control module Control Modules in Front Part Of Vehicle

J695 - Relay 2 for starter Overview of Relay

ST1 - Fuse panel 1

SB1 - Fuse 1 (on fuse panel B) Overview Of Fuses

SB3 - Fuse 3 (on fuse panel B) Overview Of Fuses

SB6 - Fuse 6 (on fuse panel B) Overview Of Fuses

SB12 - Fuse 12 (on fuse panel B) Overview Of Fuses

T5l - 5-pin connector, in the engine compartment

T12aa - 12-pin connector Voltage Stabilizer -J532-

T17q - 17-pin connector, red Overview Of Connector Stations

T17r - 17-pin connector, white Overview Of Connector Stations

T94 - 94-pin connector Locations

(D51) - Positive connection 1 (15) (in engine compartment wiring harness)

(D52) - Positive connection (15a) (in engine compartment wiring harness)

(D97) - Connection (50) (in right engine compartment wiring harness)

(D103) - Connection (3) (in engine compartment wiring harness)

* - Only for vehicles with Stop/Start system

*2 - Refer to applicable wiring diagram

*3 - Refer to applicable wiring diagram for automatic transmission

Previous Diagram 76/5 (Tracks 43-56)

Next Diagram 76/7 (Tracks 71-84)
