Diagram 76/15 (Tracks 183-196)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

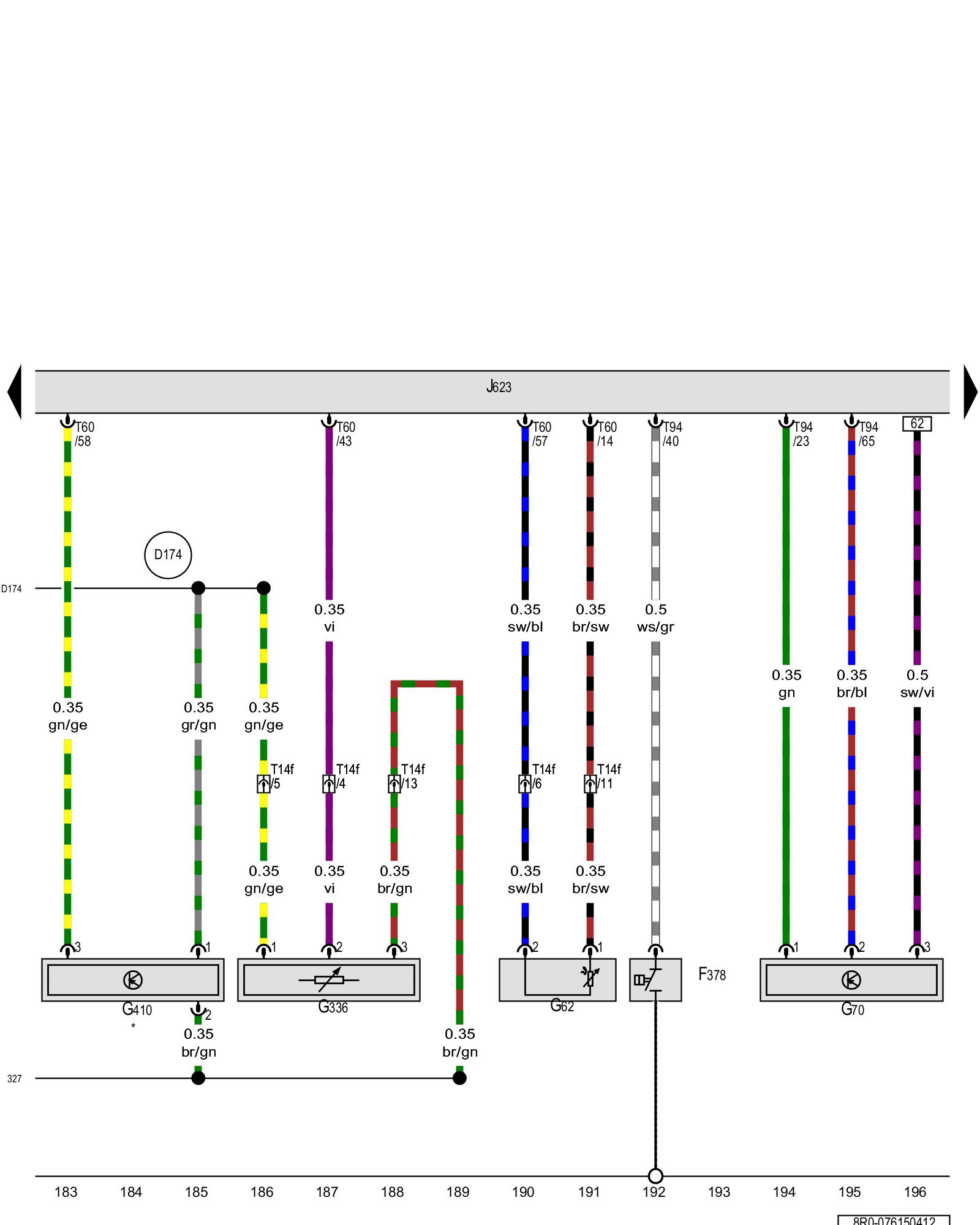

Reduced oil pressure switch, Intake manifold runner position sensor





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

F378 - Reduced oil pressure switch Locations

G62 - Engine coolant temperature sensor Locations

G70 - Mass airflow sensor Locations

G336 - Intake manifold runner position sensor

G410 - Low fuel pressure sensor Locations

J623 - Engine control module Control Modules in Front Part Of Vehicle

T14f - 14-pin connector, in the engine compartment

T60 - 60-pin connector Locations

T94 - 94-pin connector Locations

(327) - Sensor ground connection (in engine compartment wiring harness)

(D174) - Connection 2 (5V) (in engine wiring harness)

* - Only for vehicles with Flex Fuel

Previous Diagram 76/14 (Tracks 169-182)

Next Diagram 76/16 (Tracks 197-210)
