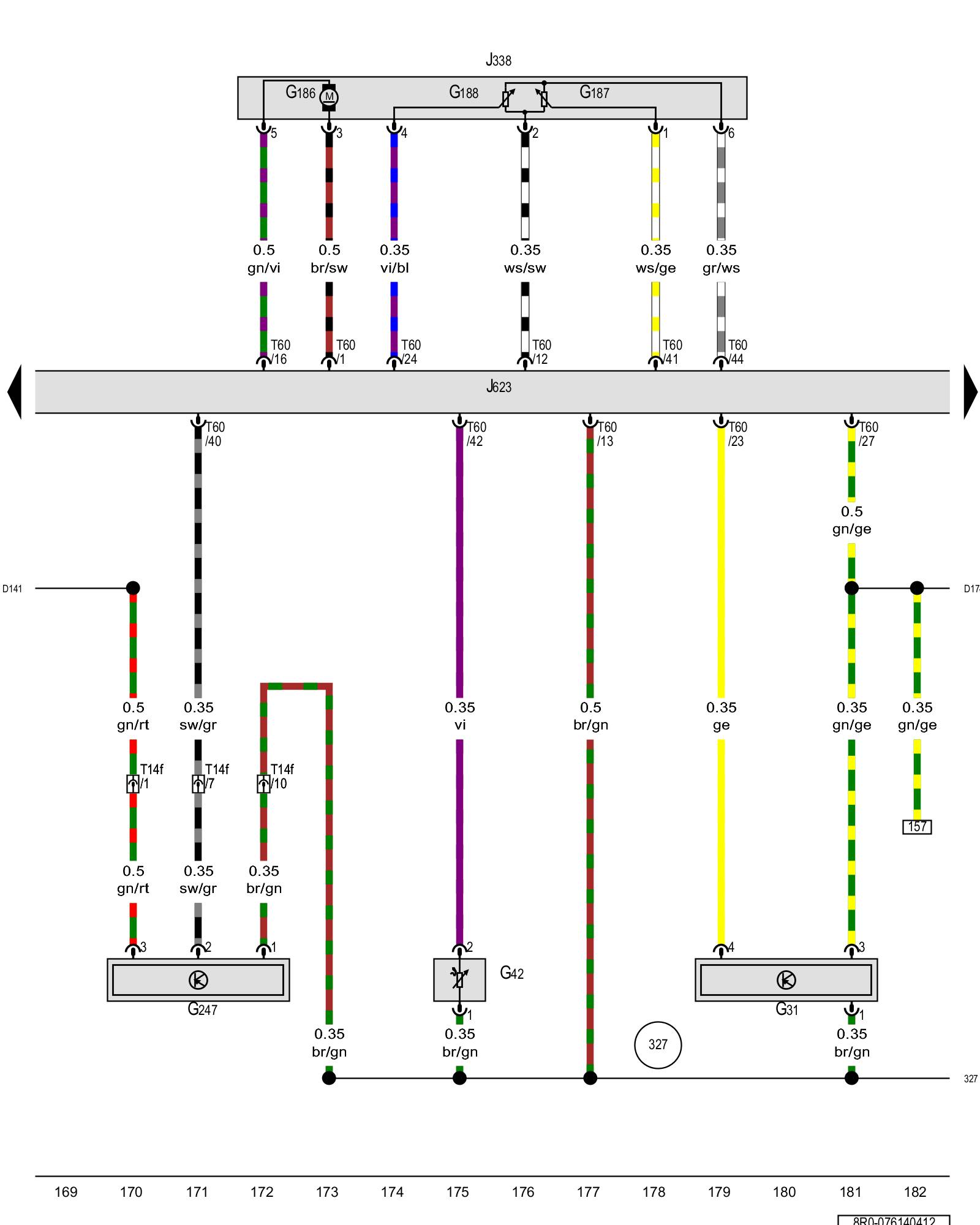

Diagram 76/14 (Tracks 169-182)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Fuel pressure sensor, Throttle valve control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G31 - Charge air pressure sensor Locations

G42 - Intake air temperature sensor Locations

G186 - EPC throttle drive Locations

G187 - EPC throttle drive angle sensor 1 Locations

G188 - EPC throttle drive angle sensor 2 Locations

G247 - Fuel pressure sensor Locations

J338 - Throttle valve control module Locations

J623 - Engine control module Control Modules in Front Part Of Vehicle

T14f - 14-pin connector, in the engine compartment

T60 - 60-pin connector Locations

(327) - Sensor ground connection (in engine compartment wiring harness)

(D141) - Connection (5V) (in engine wiring harness)

(D174) - Connection 2 (5V) (in engine wiring harness)
